Flexible copper busbar, tinned, insulated with dimensions 28 x 9 x 2000 mm, halogen free and UL approved for feeder circuits above 250V.
£119.78

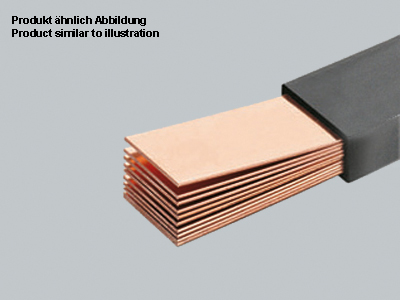

The Wöhner 01075 is a premium flexible tinned laminated copper busbar designed for efficient, high-current power distribution in industrial switchgear, control panels and OEM electrical equipment. Manufactured using multiple laminated copper strips with a durable halogen-free insulation, it offers an ideal alternative to rigid copper busbars by simplifying installation while maintaining excellent electrical performance.
The flexible laminated construction allows the busbar to be routed around obstacles without specialist bending tools, reducing installation time and mechanical stress on electrical connections. The tinned copper finish provides enhanced corrosion resistance, ensuring dependable long-term performance in demanding industrial environments.
Featuring a 5 × 24 × 1 mm laminated construction, a 120 mm² cross-sectional area, a 2 metre length and a rated current of up to 494 A (50 K), the Wöhner 01075 delivers reliable power distribution for modern low-voltage electrical systems.
The Wöhner 01075 uses multiple thin copper laminations to combine high electrical conductivity with excellent flexibility. This innovative construction enables installers to create neat, compact power distribution layouts without the need for complex bending operations or additional busbar fabrication.
The integrated halogen-free insulation improves operator safety while the tin-plated copper laminations minimise oxidation and maintain low-resistance electrical connections throughout the product's service life.
| Item number | 01075 |
|---|---|
| Description | flexible copper busbar, tinned, insulated |
| Dimensions (W x H x D) | 28 x 9 x 2000 mm |
| Weight | 225.0 kg/100 |
| Halogen free | Yes |
| Approval | UL 758 |
| HS Code | 85446010 |
| Country of Manufacture | France |
The Wöhner 01075 is a flexible laminated copper busbar used for high-current electrical interconnections in industrial power distribution systems.
The busbar is rated at 363 A with a 30 K temperature rise and 494 A with a 50 K temperature rise.
The laminated conductor consists of 5 laminations measuring 24 × 1 mm, providing a total copper cross-section of 120 mm².
Tin plating improves corrosion resistance, reduces oxidation and helps maintain low contact resistance over the lifetime of the installation.
The product complies with IEC 61439-1:2020 together with UL 758 and UL 67 requirements for insulated flexible busbars.
Wöhner flexible laminated busbars are trusted by switchgear manufacturers, panel builders and industrial electrical engineers worldwide for delivering reliable, space-saving and efficient high-current power distribution solutions.{ "@context": "https://schema.org/", "@type": "Product", "name": "Wöhner 01075 Flexible Tinned Laminated Copper Busbar", "sku": "01075", "mpn": "01075", "brand": { "@type": "Brand", "name": "Wöhner" }, "category": "Busbar Accessories", "description": "Flexible tinned laminated copper busbar with 120 mm² cross-section, 5 × 24 × 1 mm construction and rated current up to 494 A.", "additionalProperty": [ { "@type": "PropertyValue", "name": "Current rating", "value": "363 A / 494 A" }, { "@type": "PropertyValue", "name": "Construction", "value": "5 × 24 × 1 mm" }, { "@type": "PropertyValue", "name": "Cross-sectional area", "value": "120 mm²" }, { "@type": "PropertyValue", "name": "Length", "value": "2 m" }, { "@type": "PropertyValue", "name": "Insulation", "value": "Halogen-free" } ] } { "@context": "https://schema.org", "@type": "FAQPage", "mainEntity": [ { "@type": "Question", "name": "What is the Wöhner 01075 used for?", "acceptedAnswer": { "@type": "Answer", "text": "The Wöhner 01075 is a flexible laminated copper busbar used for high-current electrical interconnections in industrial power distribution systems." } }, { "@type": "Question", "name": "What is the current rating of the Wöhner 01075?", "acceptedAnswer": { "@type": "Answer", "text": "The busbar is rated at 363 A with a 30 K temperature rise and 494 A with a 50 K temperature rise." } }, { "@type": "Question", "name": "What are the dimensions of the laminated conductor?", "acceptedAnswer": { "@type": "Answer", "text": "The laminated conductor consists of 5 laminations measuring 24 × 1 mm, providing a total copper cross-section of 120 mm²." } }, { "@type": "Question", "name": "Why is the copper tin-plated?", "acceptedAnswer": { "@type": "Answer", "text": "Tin plating improves corrosion resistance, reduces oxidation and helps maintain low contact resistance." } }, { "@type": "Question", "name": "Which standards does the Wöhner 01075 comply with?", "acceptedAnswer": { "@type": "Answer", "text": "The product complies with IEC 61439-1:2020 together with UL 758 and UL 67 requirements." } } ] }
