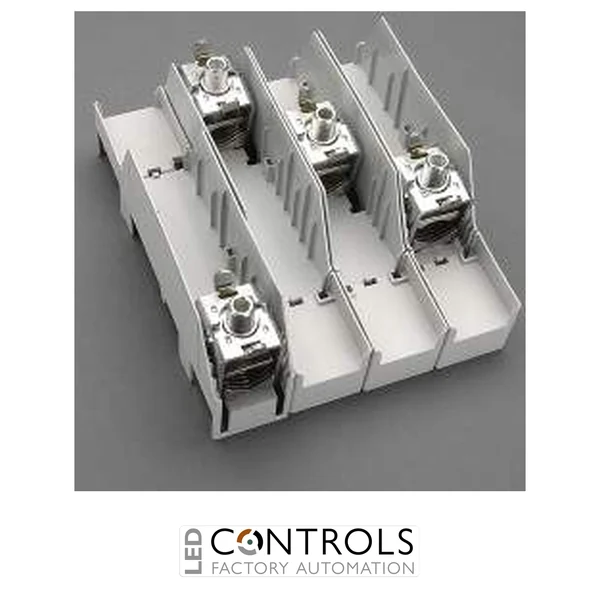

Wöhner 01147 4-pole connection set for 95 to 300 mm² conductors, compatible with 20, 25 and 30 mm busbars and profile busbars within the 60Classic system.
£106.79
The Wöhner 01147 is a robust 4-pole connection set designed for terminating large conductors onto busbar systems within industrial switchboards and power distribution assemblies. As part of the proven Wöhner 60Classic system, it provides a secure, high-current connection between incoming power cables and flat or profile busbars used in low-voltage distribution equipment.
Designed for professional panel builders and switchgear manufacturers, the connection set accommodates conductors from 95 to 300 mm² (AWG 3/0 to 600 MCM) and is compatible with 20, 25 and 30 mm wide busbars in both 5 mm and 10 mm thicknesses, as well as profile busbars. Its screw-clamp connection provides a reliable electrical and mechanical joint for demanding industrial environments.
The Wöhner 01147 is supplied as a 4-pole connection set without a cover, making it ideal for custom switchboard designs where protective covers are selected separately. It is suitable for both copper and aluminium conductors when installed in accordance with the manufacturer's recommendations.
Connection sets provide a secure interface between incoming power cables and busbar systems, creating a low-resistance electrical connection capable of carrying high currents safely and efficiently. They simplify installation while ensuring dependable long-term mechanical stability in industrial switchboards.
The Wöhner 01147 is engineered for use within the 60Classic busbar system and supports both copper and aluminium conductors. When aluminium conductors are used, the manufacturer's installation and maintenance recommendations should be followed to ensure optimum long-term performance.
| Current | 420 A |
|---|---|
| Phase | Three Phase |
| Manufacturer | Wöhner |
| Series | 60Classic |
| Model | 01147 |
| Full article number | 01147 000 |
| Product type | 4-pole connection set |
| Compatible busbars | 20, 25, 30 × 5 or 10 mm and profile busbars |
| Number of poles | 4 |
| Conductor size | 95 to 300 mm² |
| UL conductor size | AWG 3/0 to 600 MCM |
| Connection type | Screw clamp |
| Screw drive | S8 |
| Strip length | 38 mm |
| Tightening torque | 24 to 36 Nm |
| Suitable for aluminium conductors | Yes |
| Dimensions (W × H × D) | 204 × 244 × 115 mm |
| Approximate weight | 2.1 kg |
| Halogen-free | No |
| Pack quantity | 1 |
| EAN | 4021267011475 |
| HS Code | 85369010 |
| Country of Manufacture | Germany |
The Wöhner 01147 provides a secure four-pole connection between large incoming conductors and compatible industrial busbar systems.
The connection set accepts conductors from 95 to 300 mm², equivalent to AWG 3/0 to 600 MCM under UL requirements.
It is compatible with 20, 25 and 30 mm busbars in both 5 mm and 10 mm thicknesses, as well as profile busbars.
Yes. The connection set is suitable for aluminium conductors when installed in accordance with Wöhner's specified installation and maintenance guidance.
No. The Wöhner 01147 is supplied without a cover cap, allowing a suitable compatible cover to be selected separately if required.
Wöhner connection sets are trusted by panel builders, switchgear manufacturers and electrical engineers to provide reliable high-current cable termination and dependable power distribution within industrial electrical systems.
