Why Choose the Wöhner 01162 Connection Set?

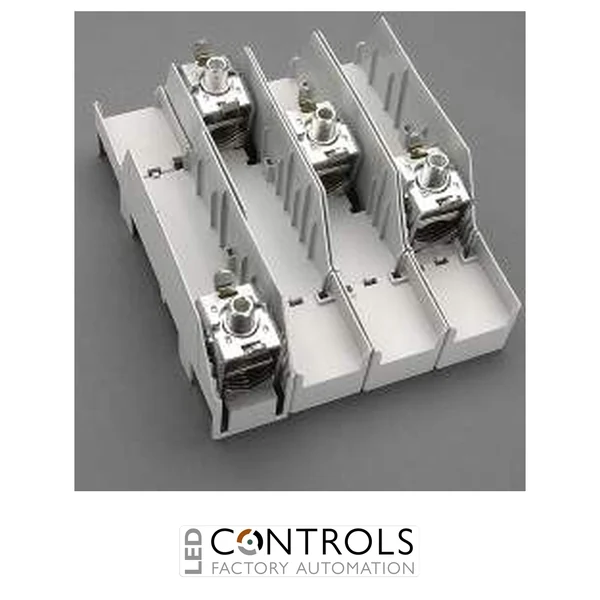

The Wöhner 01162 is a heavy-duty 4-pole connection set designed for terminating laminated copper conductors onto industrial busbar systems within switchboards, motor control centres and low-voltage power distribution assemblies. As part of the proven Wöhner CRITO® 60Classic system, it provides a secure, high-current interface between laminated copper conductors and compatible flat or section busbars.
Engineered for demanding industrial applications, the connection set accepts laminated copper conductors measuring 20 to 32 mm wide and 3 to 15 mm thick. It is compatible with 20, 25 and 30 mm busbars in both 5 mm and 10 mm thicknesses, as well as section busbars, delivering reliable electrical performance and straightforward installation.
With a 550 A IEC rated current, 800 V AC rated voltage and a verified maximum current capacity of 800 A under specified conditions, the Wöhner 01162 is ideally suited to high-performance industrial power distribution systems where dependable busbar termination is essential.
Key Advantages
- Heavy-duty 4-pole connection set for industrial busbar systems.
- Designed for laminated copper conductors 20 to 32 mm wide.
- 550 A IEC rated current with up to 800 A verified current capacity.
- Compatible with 20, 25 and 30 mm flat busbars and section busbars.
- Secure screw-clamp terminals ensure reliable electrical connections.
- Designed for seamless integration with the Wöhner 60Classic system.
Key Features
- Wöhner CRITO® 60Classic connection set.
- 4-pole configuration.
- 550 A IEC rated current.
- 800 V AC rated voltage.
- Maximum permitted voltage of 1,000 V AC or 1,500 V DC.
- Suitable for laminated copper conductors only.
- Compatible with flat and section busbars.
- Supplied without a protective cover.
Reliable High-Current Busbar Connections
Connection sets provide a secure interface between conductors and busbar systems, creating a dependable low-resistance electrical connection for industrial power distribution. Their robust construction helps ensure reliable long-term performance in demanding electrical installations.
The Wöhner 01162 is designed specifically for laminated copper conductors and is not suitable for aluminium conductors. It is intended for use within Wöhner 60Classic systems and should be installed according to the manufacturer's recommendations to achieve optimum performance.
Typical Applications
- Industrial switchboards.
- Main low-voltage distribution panels.
- Motor control centres.
- Power distribution systems.
- Machine control panels.
- Wöhner 60Classic busbar installations.
