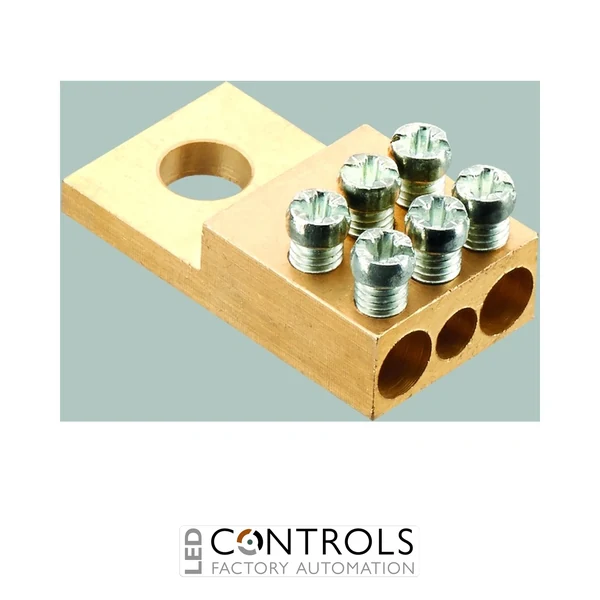

Wöhner 01182 halogen-free tunnel terminal for NH size 00 equipment, featuring an M8 screw connection for one 2.5 to 16 mm² conductor and two 2.5 to 25 mm² copper conductors.
£8.58
The Wöhner 01182 is a compact tunnel terminal for M8 screw connections, designed to provide reliable conductor termination within NH size 00 fuse-switch and busbar-mounted power distribution assemblies. As part of the established Wöhner 60Classic system, it offers a secure connection solution for industrial switchboards, distribution panels and machine control equipment.
The terminal supports one conductor from 2.5 to 16 mm² together with two additional conductors from 2.5 to 25 mm². This multi-conductor arrangement allows several outgoing circuits or parallel conductors to be connected efficiently while maintaining a compact installation footprint.
Manufactured from durable, halogen-free materials, the Wöhner 01182 is engineered for dependable mechanical and electrical performance in demanding industrial environments. It is intended for copper conductors and is not suitable for aluminium conductors.
Tunnel terminals provide a secure method of connecting conductors to industrial fuse-switch and power distribution equipment. Their enclosed clamping design helps create a stable, low-resistance electrical connection while reducing the risk of conductor movement during installation and operation.
The Wöhner 01182 enables up to three copper conductors to be terminated within a compact assembly. Its M8 screw connection delivers reliable clamping pressure, making it suitable for professional panel building and industrial electrical installations where connection security and efficient use of space are essential.
| Manufacturer | Wöhner |
|---|---|
| Series | 60Classic |
| Model | 01182 |
| Full article number | 01182 000 |
| Product type | Tunnel terminal |
| Fuse system size | NH 00 |
| Connection type | Screw connection |
| Connection screw | M8 |
| Primary conductor capacity | 1 × 2.5–16 mm² |
| Additional conductor capacity | 2 × 2.5–25 mm² |
| Suitable conductor material | Copper |
| Suitable for aluminium conductors | No |
| Dimensions (W × H × D) | 22 × 40 × 18 mm |
| Approximate weight | 0.042 kg |
| Halogen-free | Yes |
| Pack quantity | 3 |
| EAN | 4021267011826 |
| Applicable standards | IEC 60947-1 and IEC 60947-3 |
| HS Code | 85389099 |
| Country of Manufacture | Germany |
The Wöhner 01182 is used to terminate multiple copper conductors on compatible NH size 00 fuse-switch equipment within Wöhner 60Classic power distribution systems.
The terminal accepts one conductor from 2.5 to 16 mm² and two additional conductors from 2.5 to 25 mm².
The Wöhner 01182 uses an M8 screw connection to provide secure mechanical clamping and dependable electrical contact.
No. The Wöhner 01182 is designed for copper conductors and is not suitable for aluminium conductors.
The terminal is designed for compatible NH size 00 equipment within the Wöhner 60Classic busbar system.
Wöhner connection terminals are trusted by panel builders, switchgear manufacturers and electrical engineers to deliver secure conductor termination and dependable operation in industrial power distribution systems.
