Wöhner 01186 CRITO profile terminal for triple-T section busbars, designed for 1120 to 2400 mm² copper conductors with a 2500 A IEC current rating.
£157.88

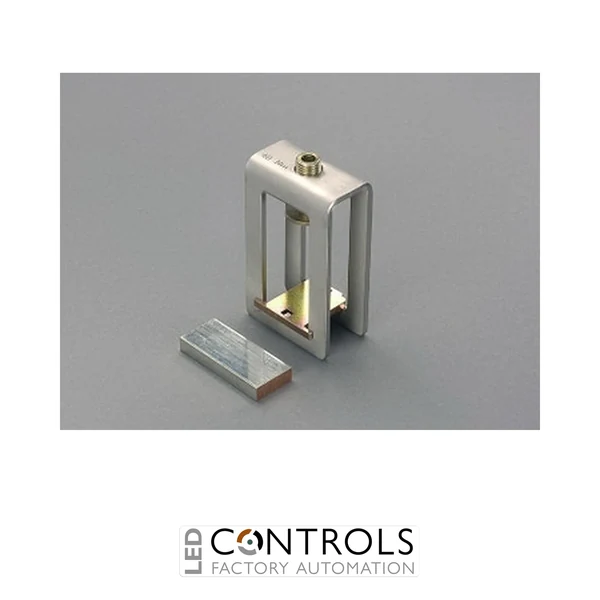

The Wöhner 01186 is a heavy-duty CRITO profile terminal designed for connecting very large copper conductors to triple-T section busbars in high-current industrial power distribution systems. As part of the proven Wöhner 60Classic centre-feed system, it delivers a secure and reliable connection for main incoming supplies, switchboards and high-capacity power distribution assemblies.
Designed for demanding industrial applications, the terminal accommodates conductor cross-sections from 1,120 to 2,400 mm² with a generous 101 × 23–45 mm terminal space. It also supports rigid copper busbars where they are installed without mechanical tension, providing excellent installation flexibility for high-current switchgear.
With an IEC rated current of 2,500 A, an 800 V AC rated voltage and a tested centre-feed current carrying capacity of up to 3,200 A, the Wöhner 01186 is engineered for the most demanding industrial power distribution applications.
Profile terminals provide a secure electrical interface between large conductors and high-capacity busbar systems. They create low-resistance, mechanically secure connections capable of carrying very high currents while maintaining reliable long-term performance in industrial switchgear.
The Wöhner 01186 is specifically designed for triple-T section busbars and centre-feed applications. It also accepts rigid copper busbars where they are installed without mechanical stress. Aluminium conductors are not permitted, and three terminals are required to create a complete three-phase connection.
| Current | 1800 A |
|---|---|
| Manufacturer | Wöhner |
| Series | CRITO 60Classic |
| Model | 01186 |
| Full article number | 01186 000 |
| Product type | Profile terminal |
| Busbar type | Triple-T section busbar |
| Application | 60Classic centre-feed unit |
| IEC rated current | 2,500 A |
| Centre-feed current capacity | 3,200 A |
| UL rated current | 1,800 A |
| IEC rated voltage | 800 V AC |
| UL rated voltage | 600 V AC |
| Maximum permitted voltage | 1,000 V AC / 1,500 V DC |
| Rated peak withstand current (Ipk) | 107 kA |
| Rated short-time withstand current (Icw 1 s) | 51.1 kA |
| Conductor cross-section | 1,120–2,400 mm² |
| Terminal space | 101 × 23–45 mm |
| Laminated copper width | 80–100 mm |
| Laminated copper thickness | 7–12 mm |
| Number of laminated copper conductors | 2 |
| Connection type | Screw clamp |
| Suitable for aluminium conductors | No |
| Dimensions (W × H × D) | 132 × 45 × 154 mm |
| Approximate weight | 1.73 kg |
| Halogen-free | Yes |
| Pack quantity | 3 |
| EAN | 4021267011864 |
| Standards | IEC 61439-1:2020, UL 508 |
| HS Code | 85369010 |
| Country of Manufacture | Germany |
The Wöhner 01186 provides a secure high-current connection between large copper conductors and triple-T section busbars in industrial power distribution systems.
The terminal is designed for conductor cross-sections from 1,120 to 2,400 mm².
The terminal has an IEC rated current of 2,500 A and a tested centre-feed current carrying capacity of up to 3,200 A.
No. The Wöhner 01186 is designed exclusively for copper conductors and is not suitable for aluminium cables.
Three Wöhner 01186 profile terminals are required to create a complete three-phase connection.
Wöhner CRITO profile terminals are trusted by switchgear manufacturers, panel builders and electrical engineers for reliable, high-capacity conductor connections within demanding industrial power distribution systems.
