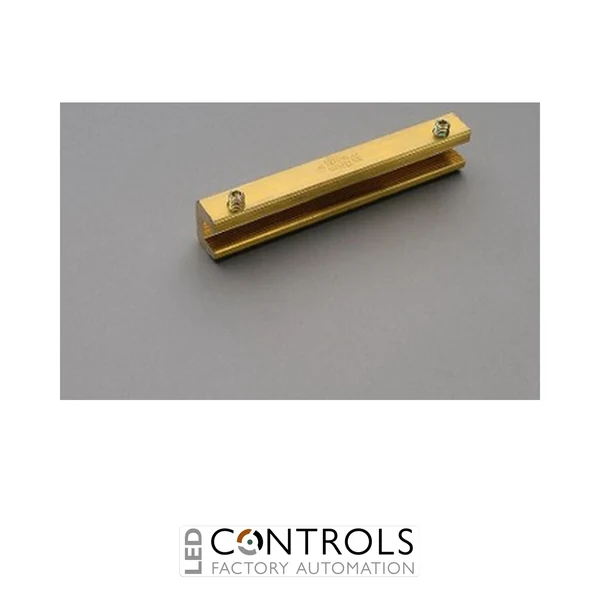

Wöhner 01193 busbar connecting terminal for longitudinal connection of 12, 15 and 20 mm flat busbars, rated at 520 A for Wöhner 60Classic and 30Compact 3P systems.
SKU:01193Alt SKU:01193000MPN:01193
Price
List Price£31.42ex VAT
Your Price (ex VAT)
£31.42
Manufacturer Lead TimePlease contact us for a delivery time before you order
Get the best trade pricesTrade exclusive
Create a trade account to unlock exclusive pricing, special offers and more.
Why Choose the Wöhner 01193 Busbar Connecting Terminal?
The Wöhner 01193 is a heavy-duty busbar connecting terminal designed to provide a secure longitudinal connection between identical flat copper busbars within industrial power distribution systems. As part of the proven Wöhner 60Classic and 30Compact 3P ranges, it enables reliable extension of busbar systems while maintaining excellent electrical and mechanical performance.
The terminal is designed for 12, 15 and 20 mm wide busbars with thicknesses of 5 mm or 10 mm. Measuring 150 mm in length, it is intended for installations with a 100–110 mm system spacing, making it ideal for larger switchboards and industrial distribution assemblies.
With a verified IEC current capacity of 520 A, a 690 V AC rated voltage and a screw-clamp connection using M8 fasteners, the Wöhner 01193 provides dependable low-resistance electrical connections for demanding industrial applications. Three terminals are required for a complete three-phase installation.
Key Advantages
Provides secure longitudinal connection between identical flat busbars.
520 A IEC current capacity for industrial power distribution.
Compatible with 12, 15 and 20 mm busbars in 5 mm and 10 mm thicknesses.
Compatible with Wöhner 60Classic and 30Compact 3P systems.
Key Features
Busbar connecting terminal.
Longitudinal busbar connector.
520 A IEC current capacity.
690 V AC IEC rated voltage.
Suitable for 12, 15 and 20 mm busbars.
Suitable for 5 mm and 10 mm busbar thicknesses.
150 mm connector length.
Halogen-free construction.
Reliable Longitudinal Busbar Connections
Longitudinal busbar connectors provide a secure method of extending flat copper busbar systems while maintaining excellent electrical continuity and mechanical strength. They are widely used in industrial switchboards where busbar systems need to be expanded or interconnected without compromising current-carrying performance.
The Wöhner 01193 is specifically designed for identical flat busbars within the Wöhner 60Classic and 30Compact 3P systems. It accommodates busbars with widths of 12, 15 and 20 mm and requires a maximum busbar offset of just 1 mm for correct installation. Three connectors are required to complete a three-phase assembly.
Typical Applications
Industrial switchboards.
Low-voltage power distribution systems.
Busbar system extensions.
OEM electrical equipment.
Machine control panels.
Wöhner 60Classic and 30Compact 3P installations.
Technical Specifications
Tick the specs you need, then view products that match.
Busbar Centre Distance (mm)
60 mm
Product Series
Wöhner 60Classic
Device Type
Terminal / feed-in
Current
520 A
Phase
Three Phase
Manufacturer
Wöhner
Series
60Classic / 30Compact 3P
Model
01193
Full article number
01193 000
Product type
Busbar connecting terminal
Rated current (IEC)
520 A
Rated voltage (IEC)
690 V AC
Maximum permitted voltage
1000 V AC / 1500 V DC
SCCR
18 kA
Compatible busbar widths
12, 15, 20 mm
Compatible busbar thickness
5 mm, 10 mm
Connector length
150 mm
Permitted system spacing
100–110 mm
Maximum permitted busbar offset
1 mm
Connection type
Screw clamp
Connection screw
M8
Tightening torque
9.6–14.4 Nm
Dimensions (W × H × D)
150 × 36 × 20 mm
Approximate weight
0.524 kg
Halogen-free
Yes
Pack quantity
3
EAN
4021267011932
Standards
IEC 61439-1:2020
Approvals
DNV GL
HS Code
85369010
Country of Manufacture
Germany
Frequently Asked Questions
What is the Wöhner 01193 used for?
The Wöhner 01193 is used to create a secure longitudinal connection between identical flat copper busbars in industrial power distribution systems.
Which busbar sizes are compatible?
The connector is suitable for busbars measuring 12, 15 or 20 mm wide with thicknesses of 5 mm or 10 mm.
What is the rated current?
The Wöhner 01193 has a verified IEC current capacity of 520 A.
How many connectors are required for a three-phase installation?
Three Wöhner 01193 busbar connecting terminals are required to complete a three-phase busbar connection.
Which Wöhner systems is the connector compatible with?
The connector is designed for use with the Wöhner 60Classic and 30Compact 3P busbar systems.
