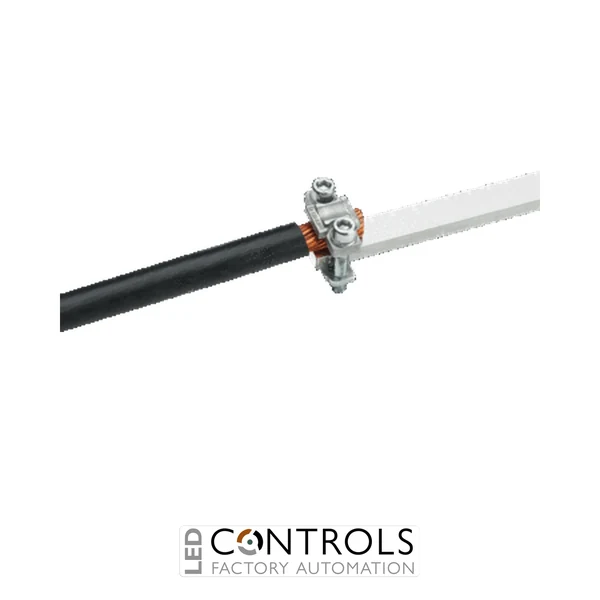

Wöhner 01202 busbar terminal for longitudinal connection, suitable for 150–300 mm² copper conductors and 25 × 5 mm flat busbars in Wöhner 60Classic systems.
£16.15
The Wöhner 01202 is a heavy-duty busbar terminal for longitudinal connection, engineered for the secure termination of large copper conductors directly onto compatible flat busbars within the Wöhner 60Classic busbar system. Designed for conductor sizes from 150 mm² to 300 mm², it provides a dependable solution for industrial switchboards, power distribution assemblies and OEM electrical equipment.
Specifically developed for 25 × 5 mm flat busbars, the terminal offers a reliable mechanical and electrical connection while maintaining low contact resistance. Its compact design allows efficient cable routing and straightforward installation in demanding industrial environments.
Manufactured to comply with IEC 61439-1, the Wöhner 01202 features a 690 V AC rated voltage, supports a maximum of 1000 V AC / 1500 V DC, and incorporates a halogen-free construction. It is intended for copper conductors only and is not suitable for aluminium cables.
Busbar terminals provide a safe and efficient means of terminating large conductors directly onto flat busbar systems while maintaining excellent electrical continuity and mechanical integrity. They are widely used in industrial switchgear where dependable long-term performance is essential.
The Wöhner 01202 is optimised for copper conductors from 150 mm² to 300 mm² and is specifically designed for 25 × 5 mm busbars within the Wöhner 60Classic range. Its robust construction and halogen-free materials make it well suited to demanding industrial installations.
| Manufacturer | Wöhner |
|---|---|
| Series | 60Classic |
| Model | 01202 |
| Full article number | 01202 000 |
| Product type | Busbar terminal for longitudinal connection |
| Conductor size | 150–300 mm² |
| Suitable conductor material | Copper only |
| Compatible busbars | 25 × 5 mm |
| Terminal space | 25 × 20 mm |
| Rated voltage (IEC AC) | 690 V |
| Maximum permitted voltage | 1000 V AC / 1500 V DC |
| Halogen-free | Yes |
| Approximate weight | 13.4 kg per 100 units (0.134 kg each) |
| Pack quantity | 3 |
| EAN | 4021267012021 |
| Standards | IEC 61439-1:2020, IEC 60999-1:1999, IEC 60999-2:2003 |
| HS Code | 85369010 |
| Country of Manufacture | Germany |
The Wöhner 01202 provides a secure longitudinal cable connection between large copper conductors and compatible flat busbars within Wöhner 60Classic power distribution systems.
The terminal accepts 150 mm² to 300 mm² copper conductors.
It is designed for installation on 25 × 5 mm flat copper busbars.
No. The Wöhner 01202 is designed exclusively for copper conductors and is not suitable for aluminium cables.
The Wöhner 01202 is designed for use within the Wöhner 60Classic busbar system.
Wöhner busbar connection technology is trusted by switchgear manufacturers, OEMs and panel builders worldwide for delivering safe, reliable and efficient high-current power distribution solutions.
