Why Choose the Wöhner 01206 Flat Terminal?

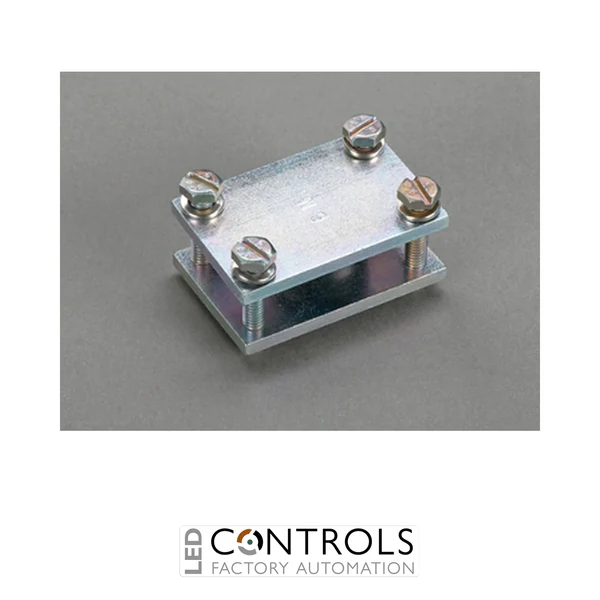

The Wöhner 01206 is a robust flat terminal designed to provide a secure mechanical connection between a 40 mm wide flat busbar and a 20 mm wide laminated copper conductor. Developed for the Wöhner 60Classic busbar system, it offers a simple, reliable solution for joining busbars and laminated flexible copper conductors in industrial power distribution assemblies.
Unlike current-carrying terminals, the Wöhner 01206 is a mechanical connecting component that enables the secure attachment of laminated copper bars to flat busbars. It is particularly suitable where flexible laminated copper links are required to compensate for vibration, thermal expansion or installation tolerances within switchgear and control panels.
Manufactured from halogen-free materials and designed in accordance with IEC 61439-1, the terminal provides dependable long-term performance while simplifying the installation of laminated copper connections in demanding industrial environments.
Key Advantages
- Secure mechanical connection between flat busbars and laminated copper conductors.
- Designed for 40 mm wide flat busbars.
- Suitable for 20 mm laminated copper conductors.
- Compatible with the Wöhner 60Classic system.
- Halogen-free construction.
- Compact design for straightforward installation.
Key Features
- Flat terminal for busbar connection.
- For connection of 40 mm busbars with 20 mm laminated copper.
- Mechanical connector (non-current carrying).
- Terminal space: 40 × 20 mm.
- Halogen-free materials.
- Designed for industrial switchgear.
- Pack quantity: 10.
Designed for Laminated Copper Busbar Connections
Flat terminals provide a secure mechanical method of joining rigid copper busbars with laminated flexible copper conductors. They are commonly used where vibration isolation, thermal expansion compensation or flexible electrical connections are required within industrial power distribution systems.
The Wöhner 01206 is specifically designed for connecting a 40 mm flat busbar to a 20 mm laminated copper conductor within the Wöhner 60Classic system. Its compact, halogen-free construction provides dependable long-term performance while simplifying installation and maintenance.
Typical Applications
- Industrial switchboards.
- Busbar power distribution systems.
- Laminated flexible copper connections.
- Motor control centres.
- OEM electrical equipment.
- Wöhner 60Classic installations.
