Why Choose the Wöhner 01223 Double-T Section Busbar?

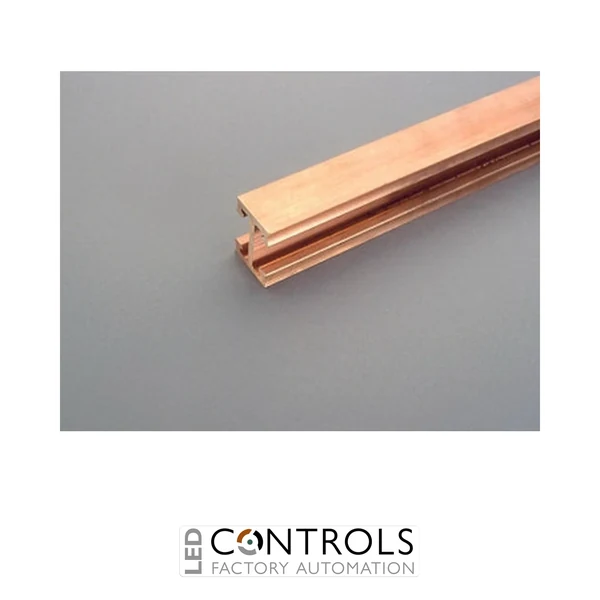

The Wöhner 01223 is a heavy-duty Double-T section copper busbar with a cross-sectional area of 500 mm², specifically designed for high-current power distribution within Wöhner 60Classic and Centre Feed Unit systems. Manufactured from high-conductivity Cu-ETP copper to EN 13601, it delivers exceptional electrical performance, mechanical strength and long-term reliability in demanding industrial applications.
Manufactured from 99.9% pure copper (Cu-ETP, CW004A) with strength class R300, the busbar features a durable Double-T profile and is supplied in a 3.60 metre plain (untinned) length. The special profile provides excellent rigidity while maintaining optimum current-carrying performance for modern switchgear assemblies.
With a 1250 A rated current, international approvals including UL, CSA and DNV, and compliance with IEC 61439-1, the Wöhner 01223 is an ideal solution for OEMs, panel builders and industrial power distribution systems requiring dependable high-current busbar technology.
Key Advantages
- Heavy-duty 500 mm² Double-T section copper busbar.
- Rated for high-current applications up to 1250 A.
- Manufactured from 99.9% Cu-ETP copper.
- Excellent mechanical rigidity.
- Suitable for Wöhner 60Classic and Centre Feed Unit systems.
- Ideal for industrial switchboards and OEM equipment.
- International approvals including UL, CSA and DNV.
Key Features
- Double-T section busbar.
- Cross-sectional area: 500 mm².
- Material: Cu-ETP copper (CW004A).
- Strength class: R300.
- Length: 3.60 m.
- Plain (untinned) finish.
- 1250 A rated current.
- Pack quantity: 1.
Designed for High-Current Industrial Power Distribution
Double-T section busbars combine exceptional electrical conductivity with increased mechanical rigidity, making them particularly suitable for large switchboards, distribution systems and high-current industrial installations. Their profile offers improved resistance to mechanical loading while maintaining low electrical resistance.
The Wöhner 01223 is manufactured from high-purity Cu-ETP copper and is designed specifically for Wöhner 60Classic and Centre Feed Unit systems. Its robust construction, 1250 A current rating and international approvals make it ideal for demanding industrial environments where reliability is critical.
Typical Applications
- Main low-voltage switchboards.
- Industrial power distribution systems.
- Motor control centres.
- OEM electrical equipment.
- High-current busbar assemblies.
- Wöhner 60Classic installations.
