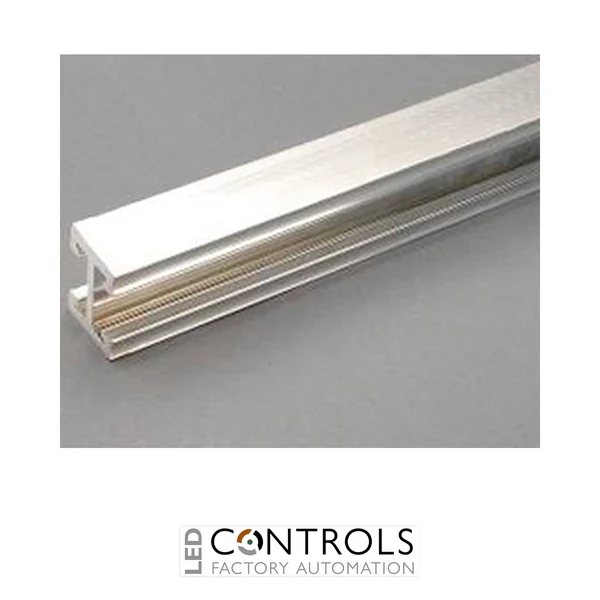

Why Choose the Wöhner 01224 Double-T Section Busbar?
The Wöhner 01224 is a high-performance double-T section copper busbar designed for use within the Wöhner 60Classic busbar system. Manufactured from tin-plated copper, it provides exceptional electrical conductivity and mechanical strength for high-current power distribution applications in industrial switchgear and control panels.
Designed to support demanding industrial installations, the Wöhner 01224 enables efficient and reliable power distribution while maintaining low resistance and excellent durability. Its precision-engineered double-T profile provides increased rigidity and secure compatibility with Wöhner's modular busbar components and accessories.
With a 500 mm² conductor cross-section, a 1200 A rated current, and a 3600 mm length, the Wöhner 01224 is ideal for electrical distribution systems, switchboards, motor control centres and industrial power panels requiring dependable high-current busbar solutions.
Key Advantages
- High-capacity 500 mm² double-T section copper busbar.
- 1200 A current rating for demanding industrial power distribution.
- Tin-plated copper construction improves corrosion resistance and conductivity.
- Designed specifically for the Wöhner 60Classic busbar system.
- Excellent mechanical rigidity for secure installation.
- Suitable for switchgear, distribution boards and control panel assemblies.
Key Features
- Manufacturer: Wöhner.
- Part number: 01224.
- Double-T section copper busbar.
- 500 mm² conductor cross-section.
- 1200 A rated current.
- 3600 mm overall length.
- Tin-plated copper construction.
- Compatible with Wöhner 60Classic modular busbar systems.
Reliable Power Distribution for Industrial Installations
The Wöhner 01224 double-T section busbar is engineered to provide efficient current distribution across industrial electrical systems. Its large conductor cross-section minimises voltage drop while supporting high-current loads in demanding environments.
As part of the Wöhner 60Classic system, the busbar integrates seamlessly with compatible switchgear, fuse systems and distribution components, helping engineers build safe, scalable and highly reliable electrical installations.
Typical Applications
- Industrial switchboards.
- Power distribution panels.
- Motor control centres.
- Low-voltage switchgear assemblies.
- Electrical distribution systems.
- OEM control panel manufacturing.
