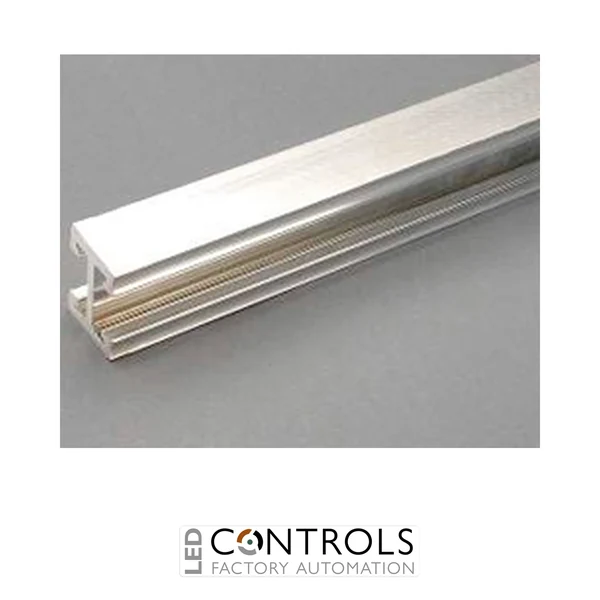

Why Choose the Wöhner 01226 Double-T Section Busbar?
The Wöhner 01226 is a high-performance 500 mm² double-T section copper busbar designed for reliable power distribution within the Wöhner 60Classic centre feed unit system. Manufactured from high-purity Cu-ETP copper and supplied with a tin-plated surface, it provides excellent electrical conductivity, mechanical strength and resistance to demanding industrial conditions.
The precision-engineered double-T profile provides the rigidity required for high-current switchgear assemblies while supporting secure integration with compatible Wöhner busbar supports, connection components and centre feed accessories. Its tin-plated finish considerably reduces the preparation required at electrical contact points and helps protect the copper against corrosion and aggressive media.
With a conductor cross-section of 500 mm² and an overall length of 653 mm, the Wöhner 01226 is suitable for industrial distribution panels, centre feed assemblies and low-voltage switchgear installations requiring a compact, durable and dependable power distribution conductor.
Key Advantages
- High-capacity 500 mm² double-T section busbar for industrial power distribution.
- Manufactured from 99.9% Cu-ETP copper for excellent electrical conductivity.
- Tin-plated surface reduces preparation work at electrical contact points.
- Effective protection against corrosion and aggressive industrial media.
- 653 mm length designed for compact centre feed assemblies.
- Compatible with the Wöhner 60Classic centre feed unit system.
Key Features
- Wöhner 60Classic busbar system component.
- 500 mm² conductor cross-section.
- 653 mm overall length.
- Double-T section profile for excellent mechanical stability.
- Cu-ETP copper construction in accordance with EN 13601.
- 99.9% copper purity.
- R300 strength class with a specified strength of 300 N/mm².
- Tin-plated surface for improved contact preparation and environmental protection.
Reliable Power Distribution for Centre Feed Systems
The Wöhner 01226 provides a low-resistance conductive path for distributing electrical power within industrial switchgear and centre feed assemblies. Its substantial conductor cross-section supports demanding power distribution requirements, while the double-T profile delivers the mechanical rigidity needed for secure and stable installation.
The tin-plated copper surface simplifies the preparation of connection points and helps maintain dependable electrical contact over the service life of the installation. As part of the modular Wöhner 60Classic system, the busbar enables panel builders to create organised, space-efficient and scalable power distribution assemblies.
Typical Applications
- Wöhner 60Classic centre feed units.
- Industrial power distribution panels.
- Low-voltage switchgear assemblies.
- Motor control centres.
- Main incoming power distribution systems.
- Machine control and automation cabinets.
