Why Choose the Wöhner 01227 Triple-T Section Busbar?

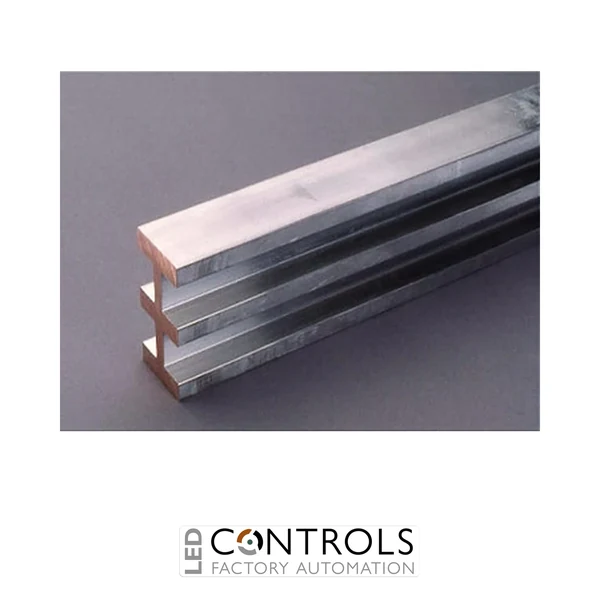

The Wöhner 01227 is a heavy-duty triple-T section copper busbar engineered for the Wöhner 60Classic centre feed unit. Manufactured from high-purity Cu-ETP copper and finished with a durable tin-plated coating, it provides outstanding electrical conductivity, high mechanical strength and excellent long-term reliability for demanding industrial power distribution systems.
Designed for high-current switchgear and busbar assemblies, the Wöhner 01227 features a precision triple-T profile that delivers exceptional rigidity while ensuring compatibility with Wöhner's modular connection technology. The tin-plated finish reduces preparation time for electrical contact points while protecting the copper against corrosion and aggressive industrial environments.
With a substantial 1140 mm² conductor cross-section and a 3600 mm overall length, the Wöhner 01227 is ideally suited to main incoming supplies, power distribution systems, switchgear assemblies and high-current industrial installations where dependable performance is essential.
Key Advantages
- Heavy-duty 1140 mm² triple-T section copper busbar.
- Manufactured from 99.9% Cu-ETP copper for maximum electrical conductivity.
- Tin-plated finish provides excellent corrosion resistance.
- Designed specifically for the Wöhner 60Classic centre feed unit.
- High mechanical rigidity for demanding switchgear applications.
- Ideal for industrial power distribution and high-current installations.
Key Features
- Wöhner 60Classic busbar system component.
- 1140 mm² conductor cross-section.
- 3600 mm overall length.
- Triple-T profile for maximum mechanical stability.
- Cu-ETP copper construction to EN 13601.
- 99.9% copper purity.
- R300 strength class.
- Tin-plated surface for enhanced durability and easier installation.
Reliable High-Current Power Distribution
The Wöhner 01227 is designed to provide an extremely low-resistance current path for high-capacity industrial power distribution systems. Its large conductor cross-section enables reliable current transmission while reducing electrical losses and supporting demanding applications.
As part of the Wöhner 60Classic system, the triple-T section busbar integrates seamlessly with compatible centre feed units, busbar supports and connection technology, allowing engineers and panel builders to create safe, scalable and efficient switchgear assemblies.
Typical Applications
- Main incoming power distribution systems.
- Industrial switchgear assemblies.
- Low-voltage distribution boards.
- Motor control centres.
- High-current electrical installations.
- OEM control panel manufacturing.
