Why Choose the Wöhner 01274 Busbar Connecting Terminal?

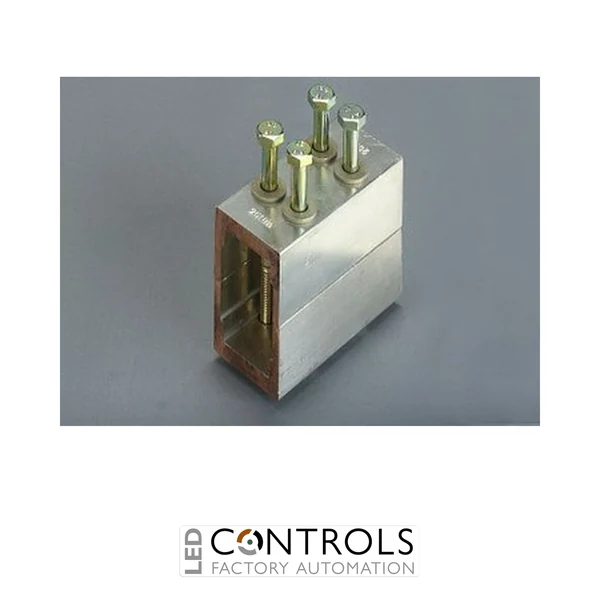

The Wöhner 01274 is a heavy-duty busbar connecting terminal designed for making secure longitudinal connections between triple-T section busbars within the Wöhner 60Classic busbar system. Rated for a maximum 2,500 A, it provides a reliable, low-resistance electrical connection for high-current industrial power distribution applications.
Designed for demanding switchboard and panel-building applications, the 01274 accommodates 95 mm triple-T busbars and is manufactured to meet both IEC 61439-1:2020 and UL 508 requirements. Its robust screw-clamp design ensures excellent mechanical stability and dependable long-term electrical performance.
Ideal for OEM panel builders, switchgear manufacturers and industrial electrical contractors, the Wöhner 01274 enables safe expansion or extension of high-current busbar systems while maintaining reliable conductivity and mechanical strength.
Key Advantages
- Designed for longitudinal connection of triple-T section busbars.
- 2,500 A IEC current capacity.
- Compatible with the Wöhner 60Classic system.
- Suitable for voltages up to 1000 V AC and 1500 V DC.
- Heavy-duty M8 screw-clamp connection.
- UL approved for demanding industrial installations.
Key Features
- Manufacturer: Wöhner.
- Model: 01274.
- Product type: Busbar connecting terminal.
- System: 60Classic.
- Designed for triple-T section busbars.
- 95 mm connection width.
- Screw-clamp connection with M8 fixing.
- Suitable for high-current longitudinal busbar connections.
Reliable High-Current Busbar Connections
The Wöhner 01274 is engineered to create secure longitudinal connections between triple-T busbars while maintaining low contact resistance and excellent mechanical integrity. Its heavy-duty construction makes it ideal for extending or joining high-current busbar systems used in industrial power distribution.
For UL-compliant installations, Wöhner specifies the use of the 01361 phase separator set when installing the 01274 longitudinal connecting terminal.
Typical Applications
- Main low-voltage switchboards.
- Industrial power distribution systems.
- Large OEM electrical panels.
- Motor control centres.
- High-current busbar extensions.
- Heavy-duty electrical infrastructure.
