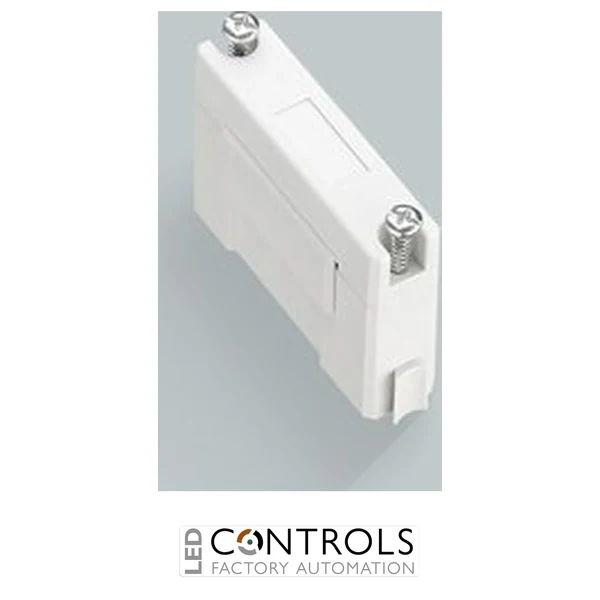

Wöhner 01355 1-pole busbar support for the 60Classic system, designed for 12, 20 and 30 mm copper busbars used in industrial low voltage power distribution panels.
£5.42
The Wöhner 01355 is a high-quality 1-pole busbar support designed for secure mounting of copper busbars within low voltage power distribution systems. As part of the proven Wöhner 60Classic system, it provides reliable mechanical support and electrical insulation for switchboards, control panels and industrial distribution assemblies.
Engineered for durability and long service life, the Wöhner 01355 features an integrated end cover and can be mounted individually or attached directly to the Wöhner 01603 busbar support. Its compact design simplifies installation while ensuring excellent insulation performance for demanding industrial applications.
Suitable for 12, 20 and 30 mm busbars with thicknesses of 5 mm or 10 mm, this support is designed for systems operating up to 690 V AC and complies with the latest IEC 61439-1 requirements, making it ideal for modern switchgear and panel building applications.
Busbar supports are essential components in electrical distribution panels, providing secure mechanical fixing while maintaining the required insulation distances between live conductors and panel structures. The Wöhner 01355 helps create safe, organised and reliable power distribution systems suitable for industrial and commercial installations.
As part of the Wöhner 60Classic platform, the 01355 integrates seamlessly with compatible busbar systems, allowing panel builders to create flexible and robust switchgear assemblies while complying with international electrical standards.
| Phase | Single Phase |
|---|---|
| Manufacturer | Wöhner |
| Series | 60Classic |
| Model | 01355 |
| Product type | Busbar support |
| Poles | 1 |
| Busbar sizes | 12, 20, 30 × 5 / 10 mm |
| Rated voltage | 690 V AC |
| Rated insulation voltage (Ui) | 1000 V AC |
| Impulse withstand voltage (Uimp) | 8 kV |
| Maximum DC voltage | 1500 V DC |
| Frequency | 50 / 60 Hz |
| Standards | IEC 61439-1 |
| Minimum operating temperature | -40°C |
| Dimensions (W × H × D) | 17 × 60 × 45 mm |
| Weight | Approx. 41 g |
| Mounting | Individual or attachable to Wöhner 01603 support |
| HS Code | 85469010 |
| Country of Manufacture | Germany |
It is used to securely support and insulate copper busbars within electrical switchboards and power distribution systems.
The support accommodates 12 mm, 20 mm and 30 mm busbars with thicknesses of 5 mm or 10 mm.
Yes. It can be individually mounted or attached directly to the Wöhner 01603 busbar support.
The support is suitable for systems operating up to 690 V AC, with a rated insulation voltage of 1000 V AC.
The Wöhner 01355 forms part of the Wöhner 60Classic modular busbar system.
Wöhner busbar systems are trusted by switchboard manufacturers, panel builders and industrial engineers worldwide for delivering reliable, safe and standards-compliant electrical power distribution solutions.
