Why Choose the Wöhner 01356 PE/N Busbar Support?

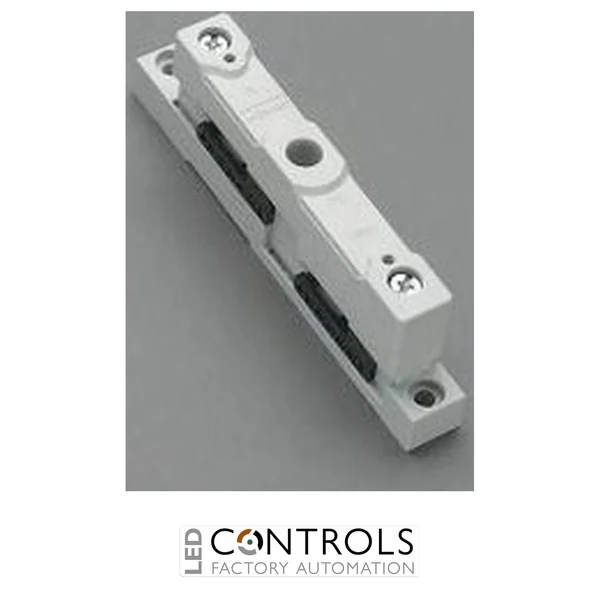

The Wöhner 01356 is a robust 2-pole PE/N busbar support designed for the secure mounting of protective earth (PE) and neutral (N) busbars within low voltage power distribution systems. As part of the reliable Wöhner 60Classic system, it provides excellent mechanical strength, electrical insulation and installation flexibility for industrial switchboards and electrical control panels.
Designed for modern panel building, the Wöhner 01356 features external screw holes allowing it to be used as either an individual support or a centre support. It also enables simple PE and N conductor connections while offering 5 mm and 10 mm depth balancing for compatible busbar systems.
Compatible with 12, 15, 20, 25 and 30 mm copper busbars with 5 mm or 10 mm thickness, this support is suitable for installations operating up to 690 V AC. Manufactured to meet IEC 61439-1 and UL 508 standards, it delivers dependable performance in demanding industrial applications.
Key Advantages
- Designed specifically for PE and N busbar support applications.
- Compatible with the Wöhner 60Classic busbar system.
- Suitable for use as an individual or centre support.
- Supports a wide range of standard copper busbar sizes.
- Allows easy PE and N conductor connection.
- Complies with IEC 61439-1 and UL 508 requirements.
Key Features
- Wöhner 60Classic system component.
- 2-pole PE/N busbar support.
- Compatible with 12, 15, 20, 25 and 30 mm busbars.
- Suitable for 5 mm and 10 mm busbar thicknesses.
- Rated operating voltage up to 690 V AC.
- Rated insulation voltage of 1000 V AC.
- External fixing holes for flexible installation.
- Halogen-free insulating material.
Reliable PE and Neutral Busbar Support
PE/N busbar supports provide secure mechanical fixing while maintaining the insulation clearances required within electrical switchboards and distribution systems. The Wöhner 01356 is engineered to deliver dependable support for protective earth and neutral conductors while simplifying assembly and ensuring compliance with international standards.
Its versatile design allows use as either an individual support or centre support, making it ideal for panel builders requiring flexible installation options across a wide variety of industrial power distribution applications.
Typical Applications
- Industrial switchboards.
- Power distribution panels.
- Motor control centres.
- Electrical control cabinets.
- OEM machinery panels.
- Commercial and industrial electrical installations.
