Why Choose the Wöhner 01438 CRITO®185Power Connection Rail?

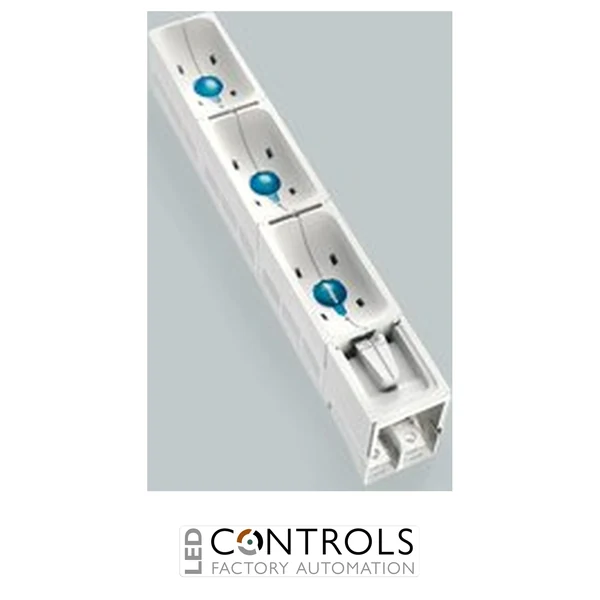

The Wöhner 01438 is a genuine CRITO®185Power 3-pole connection rail designed for high-current power distribution on the Wöhner 185Power busbar system. Featuring robust M12 screw connections, it provides a secure connection point for incoming or outgoing cables and is suitable for installation at either the top or bottom of the assembly. It is compatible with 30, 40, 60, 80, 100 and 120 × 10 mm flat copper busbars.
Rated at 800 A with a maximum operating voltage of 690 V AC, the 01438 is engineered for demanding industrial environments. The connection rail also supports the integration of a current transformer (CT), making it an ideal choice for applications requiring energy monitoring or metering.
Manufactured from high-quality, halogen-free materials, the Wöhner 01438 complies with IEC 61439-1:2020, IEC 60999-1, IEC 60999-2 and is suitable for UL 508 applications, delivering dependable performance for OEMs, panel builders and industrial power distribution systems.
Key Advantages
- Rated for 800 A continuous current.
- Designed for the Wöhner 185Power busbar system.
- Robust 3-pole M12 screw connection.
- Suitable for busbars from 30 × 10 mm to 120 × 10 mm.
- Current transformer integration supported.
- Manufactured from halogen-free materials.
Key Features
- Original Wöhner CRITO®185Power connection rail.
- 3-pole design.
- M12 screw terminals.
- Top or bottom cable entry.
- 800 A rated current.
- 690 V AC rated voltage.
- Supports CT integration.
- Compatible with CrossLink® terminal clamps.
The Wöhner 01438 provides a reliable, high-capacity connection point for industrial busbar installations where dependable cable termination is essential. Its 800 A rating makes it suitable for switchboards, motor control centres and power distribution assemblies requiring robust mechanical strength and excellent electrical performance.
The integrated provision for current transformers allows energy measurement and monitoring equipment to be incorporated without additional mounting hardware, simplifying panel design while maintaining the modular flexibility of the 185Power platform. Compatible CrossLink® terminal clamps are also available for drill-free busbar mounting where required.
Typical Applications
- Industrial switchgear.
- Main low-voltage distribution boards.
- Power distribution panels.
- Motor control centres.
- OEM electrical equipment.
- Energy monitoring installations.
