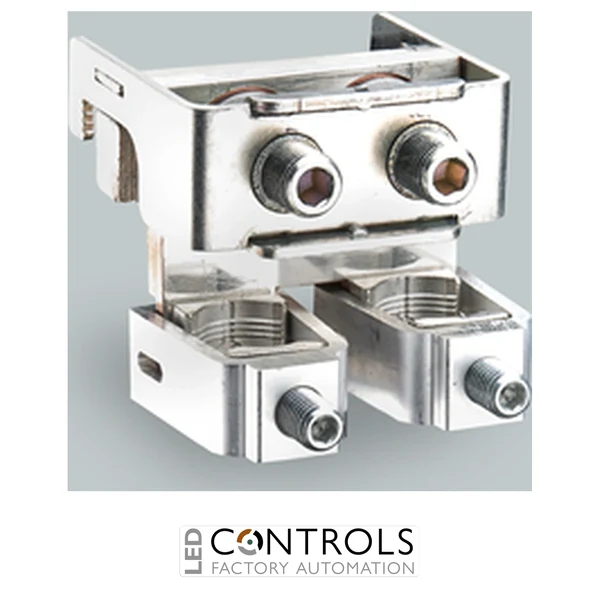

The Wöhner 01441 is a high performance connection module designed for the Wöhner CRITO® 185Power busbar system. Engineered for direct cable termination, it provides a secure and efficient method of connecting large power cables to low voltage busbar systems used in industrial switchgear and power distribution applications.
Designed for panel builders, OEMs and electrical engineers, the Wöhner 01441 features two box terminals for cable sizes up to 300 mm², allowing reliable high current connections while simplifying installation. Its compact design integrates seamlessly into the 185Power system to deliver dependable performance in demanding industrial environments.
Rated for 1000 A at up to 690 V AC, the module is suitable for heavy-duty power distribution systems requiring secure cable connections to busbars ranging from 30 × 10 mm to 120 × 10 mm. It can be installed with cable entry from either the top or bottom, providing installation flexibility.
Key Advantages
Designed specifically for the Wöhner CRITO® 185Power busbar system.
Direct cable connection using two 300 mm² box terminals.
Rated for 1000 A continuous current.
Suitable for busbars from 30 × 10 mm to 120 × 10 mm.
Top or bottom cable entry for installation flexibility.
Robust industrial design for switchgear and power distribution panels.
Key Features
Wöhner CRITO® 185Power connection module.
Direct cable connection.
Two integrated box terminals.
Supports conductors from 120 mm² to 300 mm².
Rated current of 1000 A.
690 V AC IEC rated voltage.
Compatible with multiple 185Power busbar sizes.
Halogen-free construction.
Reliable High Current Busbar Connections
The Wöhner 01441 provides a safe and reliable connection point between large power cables and industrial busbar systems. Designed for demanding power distribution applications, it supports high current loads while maintaining compact dimensions for efficient panel layouts.
As part of the CRITO® 185Power system, the module enables quick installation, dependable electrical performance and straightforward integration into modern low voltage switchgear assemblies.
Typical Applications
Main low voltage switchboards.
Industrial power distribution systems.
Motor control centres.
Machine building and OEM equipment.
Commercial electrical distribution panels.
High current busbar installations.
Technical Specifications
Tick the specs you need, then view products that match.
Rail / Busbar Profile
100 × 10 mm, 120 × 10 mm, 30 × 10 mm, 40 × 10 mm, 60 × 10 mm, 80 × 10 mm
Busbar Centre Distance (mm)
185 mm
Product Series
Wöhner 185Power
Current
840 A
Manufacturer
Wöhner
Series
CRITO® 185Power
Model
01441
Manufacturer Part Number
01441 000A
Product type
Connection module
Rated current
1000 A (IEC)
Rated voltage
690 V AC
Maximum permitted voltage
1000 V AC / 1500 V DC
Terminal size
2 × 300 mm² box terminals
Supported conductor size
120 to 300 mm²
Compatible busbars
30, 40, 60, 80, 100 and 120 × 10 mm
Dimensions (W × H × D)
98 × 88 × 100 mm
Cable entry
Top or bottom
Standards
IEC 61439-1, IEC 60999-1, IEC 60999-2, UL 508
Construction
Halogen-free
HS Code
85369010
Country of Manufacture
Germany
Frequently Asked Questions
What is the Wöhner 01441 used for?
The Wöhner 01441 is a connection module that provides direct cable termination to the Wöhner CRITO® 185Power busbar system.
What current rating does the module support?
The module has an IEC rated current of 1000 A.
What cable sizes can be connected?
The integrated box terminals accept conductors from approximately 120 mm² to 300 mm².
Which busbar sizes are compatible?
The connection module fits busbars measuring 30, 40, 60, 80, 100 and 120 × 10 mm.
Can cables enter from either direction?
Yes. The Wöhner 01441 supports cable connection from either the top or bottom of the module for greater installation flexibility.
Trusted by Panel Builders Worldwide
Wöhner 185Power components are trusted by switchgear manufacturers and electrical engineers worldwide for delivering reliable, high current power distribution with excellent installation flexibility.
Rail / Busbar Profile
100 × 10 mm, 120 × 10 mm, 30 × 10 mm, 40 × 10 mm, 60 × 10 mm, 80 × 10 mm
Busbar Centre Distance (mm)
185 mm
Product Series
Wöhner 185Power
Current
840 A
Manufacturer
Wöhner
Series
CRITO® 185Power
Model
01441
Manufacturer Part Number
01441 000A
Product type
Connection module
Rated current
1000 A (IEC)
Rated voltage
690 V AC
Maximum permitted voltage
1000 V AC / 1500 V DC
Terminal size
2 × 300 mm² box terminals
Supported conductor size
120 to 300 mm²
Compatible busbars
30, 40, 60, 80, 100 and 120 × 10 mm
Dimensions (W × H × D)
98 × 88 × 100 mm
Cable entry
Top or bottom
Standards
IEC 61439-1, IEC 60999-1, IEC 60999-2, UL 508
Construction
Halogen-free
HS Code
85369010
Country of Manufacture
Germany
