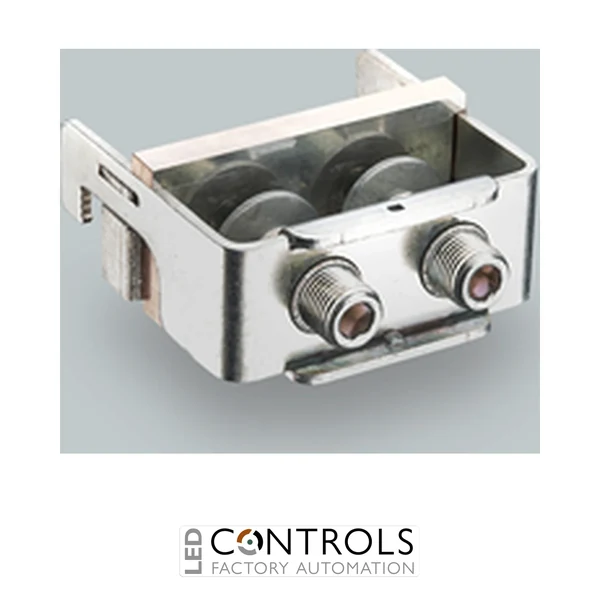

Wöhner 01442 CRITO 185Power connection module for connecting up to two laminated copper conductors to industrial busbar systems, rated 1400 A.
£136.18
The Wöhner 01442 is a robust connection module designed for the Wöhner CRITO® 185Power busbar system. Engineered for the direct connection of laminated copper conductors, it provides a secure and efficient method of feeding or tapping high current busbar systems used in industrial switchgear and power distribution applications.
Designed for panel builders, OEMs and electrical engineers, the Wöhner 01442 accommodates up to two laminated copper conductors measuring 80 × 10 mm. The module supports both top and bottom cable entry and is fully compatible with the CrossLink® touch-safe protection system, making it ideal for modern low voltage power distribution assemblies.
Rated for 1400 A at up to 690 V AC, the connection module is suitable for demanding industrial installations requiring reliable high current connections to busbars measuring 30 × 10 mm to 120 × 10 mm. It can also accommodate rigid copper busbars when installed without mechanical stress.
The Wöhner 01442 provides a dependable method of connecting laminated copper conductors directly to industrial busbar systems. Its high current capability, compact dimensions and flexible installation options make it well suited to modern switchgear and low voltage power distribution equipment.
As part of the CRITO® 185Power range, the module enables safe, efficient and professional power distribution installations while remaining fully compatible with Wöhner's CrossLink® protection system.
| Current | 1400 A |
|---|---|
| Manufacturer | Wöhner |
| Series | CRITO® 185Power |
| Model | 01442 |
| Manufacturer Part Number | 01442 000A |
| Product type | Connection module |
| Rated current | 1400 A |
| Rated voltage | 690 V AC |
| Maximum permitted voltage | 1000 V AC / 1500 V DC |
| Connection type | Laminated copper conductors |
| Maximum conductor size | 2 × 80 × 10 mm laminated copper |
| Compatible busbars | 30, 40, 60, 80, 100 and 120 × 10 mm |
| Connection | Top or bottom |
| Dimensions (W × H × D) | 98 × 88 × 95 mm |
| Protection | Without cover |
| Material | Halogen-free |
| Standards | IEC 61439-1, IEC 60999-1, IEC 60999-2, UL 508 |
| HS Code | 85369010 |
| Country of Manufacture | Germany |
The Wöhner 01442 is a connection module designed to connect laminated copper conductors directly to the Wöhner CRITO® 185Power busbar system.
The module has an IEC rated current of 1400 A.
It supports up to two laminated copper conductors measuring 80 × 10 mm.
The module is compatible with busbars measuring 30, 40, 60, 80, 100 and 120 × 10 mm.
Yes. The Wöhner 01442 supports both top and bottom connection for greater installation flexibility.
Wöhner CRITO® 185Power connection modules are trusted by switchgear manufacturers and electrical engineers for delivering safe, reliable and efficient high current busbar connections in industrial power distribution systems.
