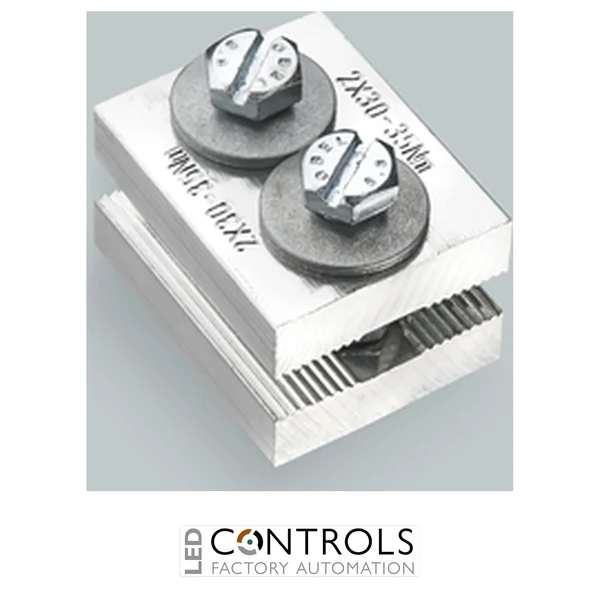

Why Choose the Wöhner 01481 Longitudinal Busbar Connector?
The Wöhner 01481 is a heavy-duty longitudinal busbar connector developed for the Wöhner 185Power busbar system. Designed to provide a secure mechanical and electrical connection between adjoining busbar sections, it enables reliable high current power distribution while simplifying the assembly and expansion of industrial switchgear systems.
Engineered for switchgear manufacturers, panel builders and OEMs, the Wöhner 01481 is designed for larger busbar sizes and delivers dependable electrical performance in demanding industrial environments. Manufactured from halogen-free materials, it integrates seamlessly with the CrossLink® touch-safe protection system used throughout the 185Power range.
The connector is suitable for 60 × 10 mm, 100 × 10 mm and 120 × 10 mm busbars and provides a maximum IEC current capacity of 1100 A. It is ideal for extending or joining larger busbar systems within modern low voltage power distribution assemblies.
Key Advantages
- Designed specifically for the Wöhner 185Power busbar system.
- Provides secure longitudinal joining of large busbar sections.
- 1100 A IEC current capacity.
- Suitable for 60 × 10 mm, 100 × 10 mm and 120 × 10 mm busbars.
- Compact design enables straightforward installation.
- Compatible with CrossLink® touch-safe protection accessories.
Key Features
- Longitudinal busbar connector.
- Compatible with the Wöhner 185Power system.
- 1100 A maximum IEC current capacity.
- 690 V AC rated operating voltage.
- Suitable for 60 × 10 mm, 100 × 10 mm and 120 × 10 mm busbars.
- M10 screw clamp connection.
- Halogen-free construction.
- Designed for industrial switchgear and power distribution systems.
Reliable Connections for Large Busbar Systems
The Wöhner 01481 provides a secure electrical and mechanical connection between larger busbar sections, ensuring dependable current transfer throughout industrial power distribution systems. Its precision-engineered design supports quick installation while maintaining excellent electrical performance and long service life.
As part of the Wöhner 185Power platform, the connector integrates seamlessly with compatible busbars and CrossLink® protection components, providing a modular and reliable solution for modern switchboard construction.
Typical Applications
- Industrial low voltage switchboards.
- Main power distribution systems.
- Control panel construction.
- OEM electrical equipment.
- Busbar extensions and system expansion.
- Commercial and industrial electrical installations.
