Why Choose the Wöhner 01500 Universal Busbar Support?

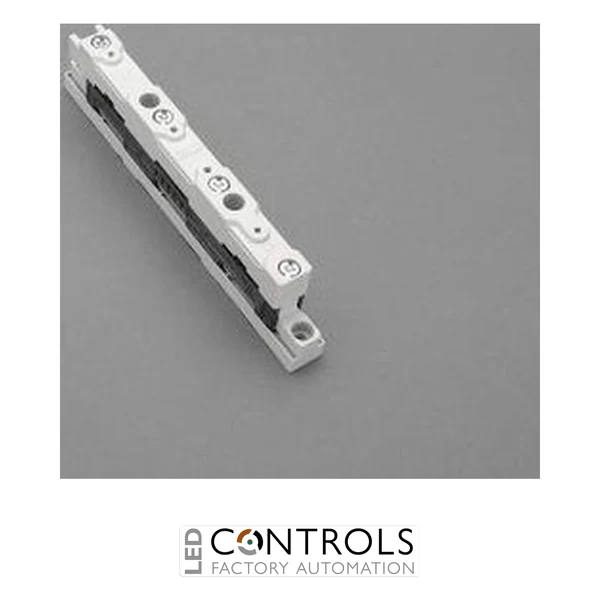

The Wöhner 01500 is a versatile 3-pole universal busbar support developed for the Wöhner 60Classic busbar system. Designed to provide secure mechanical support and reliable electrical insulation for copper busbars, it is ideal for industrial switchboards, control panels and OEM power distribution equipment. A key advantage is its additional external screw holes, allowing greater installation flexibility and enabling the support to be used as a centre support in larger busbar assemblies.
Manufactured from durable, halogen-free insulating material, the Wöhner 01500 is suitable for busbars measuring 12 mm, 15 mm, 20 mm, 25 mm, 30 × 5 mm and 30 × 10 mm. It integrates seamlessly with other 60Classic accessories, including the optional 01489 PE/N support and 01573 end cover.
Its robust construction, compact footprint and modular design make it an excellent choice for panel builders seeking dependable long-term performance in demanding industrial environments.
Key Advantages
- Designed for the Wöhner 60Classic busbar system.
- 3-pole universal busbar support.
- Additional external screw holes for greater mounting flexibility.
- Can also be used as a centre support.
- Suitable for multiple copper busbar sizes.
- Manufactured from halogen-free insulating material.
Key Features
- Universal busbar support.
- 3-pole construction.
- Additional external fixing screw holes.
- Compatible with 12 mm, 15 mm, 20 mm, 25 mm, 30 × 5 mm and 30 × 10 mm busbars.
- Designed for the Wöhner 60Classic system.
- Can be used as a centre support.
- Compatible with optional PE/N support 01489.
- Compatible with end cover 01573.
Flexible Support for Industrial Busbar Systems
The Wöhner 01500 provides secure support for copper busbars while maintaining accurate spacing and dependable insulation throughout low voltage power distribution systems. Its additional external fixing points simplify installation and offer greater flexibility for switchboard manufacturers and panel builders.
Suitable for both standard mounting and centre support applications, the 01500 is an essential component within the modular 60Classic platform, helping create safe, organised and expandable busbar systems.
Typical Applications
- Industrial switchboards.
- Main low voltage power distribution.
- Electrical control panels.
- Machine building and OEM equipment.
- Commercial distribution boards.
- 60Classic modular busbar installations.
