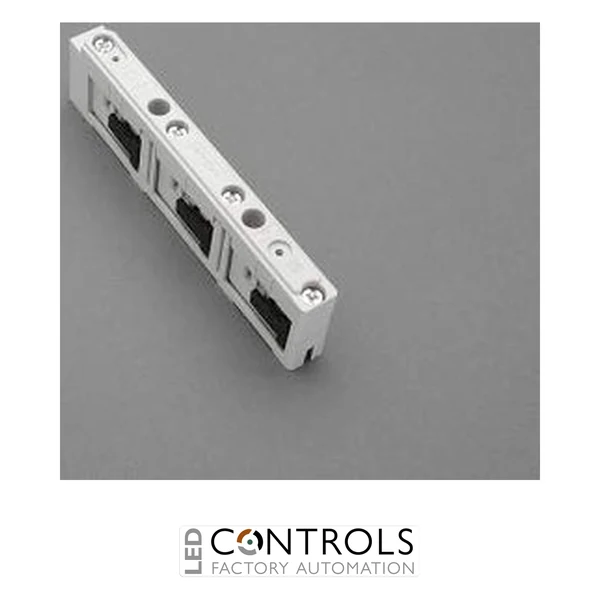

Wöhner 01508 3-pole UL universal busbar support for the 60Classic busbar system, suitable for UL feeder circuits above 250 V and compatible with 12 mm, 20 mm, 30 x 5 mm and 30 x 10 mm busbars.
£30.37
The Wöhner 01508 is a 3-pole UL universal busbar support developed for the Wöhner 60Classic busbar system. Specifically designed for UL feeder circuits above 250 V, it provides secure mechanical support and dependable electrical insulation for copper busbars used in industrial switchboards, OEM machinery and commercial power distribution equipment.
Featuring internal fixing screw holes, the Wöhner 01508 offers straightforward installation while maintaining excellent mechanical stability. It is suitable for 12 mm, 20 mm, 30 × 5 mm and 30 × 10 mm copper busbars, making it ideal for UL-compliant busbar assemblies requiring reliable long-term performance.
Manufactured from durable, halogen-free insulating material and certified to both IEC 61439-1:2020 and UL 508, the 01508 provides a dependable solution for demanding industrial environments. It is compatible with the 01573 end cover and other accessories within the 60Classic platform.
The Wöhner 01508 provides dependable support and insulation for copper busbars used in UL-compliant low voltage power distribution systems. Its rugged construction ensures accurate busbar spacing while maintaining excellent mechanical stability and electrical safety in demanding industrial applications.
Designed as part of the modular 60Classic platform, the support is compatible with the 01573 end cover, optional UL spacers and dedicated mounting accessories, making it an ideal choice for switchboard manufacturers serving global markets.
| Phase | Three Phase |
|---|---|
| Manufacturer | Wöhner |
| Series | 60Classic |
| Model | 01508 |
| Manufacturer Part Number | 01508 000 |
| Type Number | S620-L |
| Product type | UL universal busbar support |
| Configuration | 3-pole |
| Rated operating voltage (IEC) | 800 V AC |
| Rated insulation voltage (Ui) | 1000 V AC |
| Rated impulse withstand voltage (Uimp) | 8 kV |
| Rated frequency | 50 / 60 Hz |
| Peak withstand current (Ipk) | 70 kA |
| Short-time withstand current (Icw 1 s) | 34.2 kA |
| Compatible busbars | 12 mm, 20 mm, 30 × 5 mm and 30 × 10 mm copper busbars |
| Approvals | UL, CSA, DNV GL |
| Standards | IEC 61439-1:2020, UL 508 |
| HS Code | 85469010 |
| Country of Manufacture | Germany |
The Wöhner 01508 is a 3-pole UL universal busbar support used to securely mount and insulate copper busbars in the Wöhner 60Classic busbar system.
It is designed for 12 mm, 20 mm, 30 × 5 mm and 30 × 10 mm copper busbars.
Yes. It is specifically designed for UL feeder circuits above 250 V and complies with UL 508 requirements.
The 01508 complies with IEC 61439-1:2020 and UL 508 and carries UL, CSA and DNV GL approvals.
Yes. The Wöhner 01573 end cover is designed for use with the 01508 to protect exposed busbar ends.
Wöhner UL busbar supports are trusted by switchgear manufacturers and electrical engineers worldwide for delivering safe, reliable and standards-compliant power distribution systems.
