Why Choose the Wöhner 01513 CRITO® Profile Terminal?

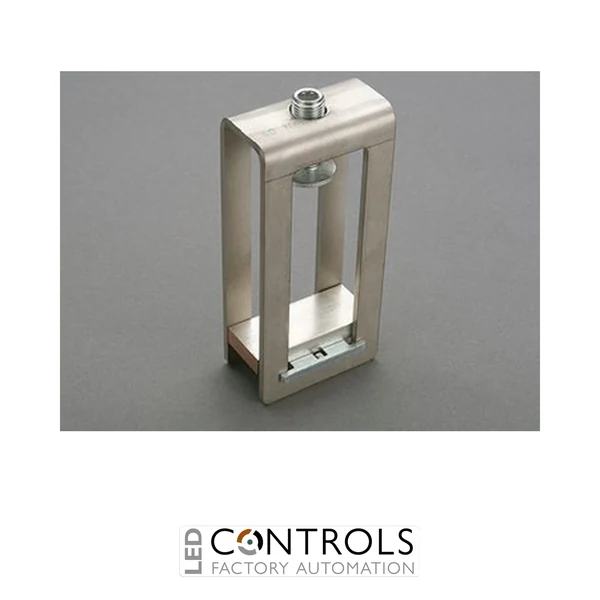

The Wöhner 01513 is a heavy-duty CRITO® profile terminal designed for terminating large conductors on triple-T section busbars within the Wöhner 60Classic centre feed system. Engineered for high-current industrial applications, it provides a secure and reliable connection for conductors ranging from 420 mm² to 960 mm², making it ideal for main incoming power supplies and centre feed assemblies.
The profile terminal features a generous 41 × 23–45 mm terminal space and is suitable for both round and laminated copper conductors. It also allows rigid copper busbars to be connected provided they are installed without mechanical stress, offering additional installation flexibility.
Rated at 1600 A (IEC) and designed for use on Wöhner triple-T section busbars, the 01513 complies with IEC 61439-1:2020 and UL 508, making it suitable for demanding industrial power distribution systems worldwide.
Key Advantages
- Designed for Wöhner 60Classic centre feed systems.
- Heavy-duty CRITO® profile terminal for triple-T section busbars.
- Supports conductor sizes from 420 mm² to 960 mm².
- 1600 A IEC current rating.
- Suitable for laminated copper conductors and rigid copper busbars.
- UL and CSA approved for international installations.
Key Features
- CRITO® profile terminal.
- Designed for triple-T section busbars.
- Terminal space: 41 × 23–45 mm.
- Conductor range: 420–960 mm².
- Rated current: 1600 A (IEC).
- Rated voltage: 690 V AC.
- Suitable for laminated copper conductors.
- Compatible with Wöhner centre feed systems.
Reliable High-Current Centre Feed Connections
The Wöhner 01513 is specifically engineered for high-current centre feed applications where dependable conductor termination is essential. Its large terminal space accommodates substantial conductor sizes while ensuring secure mechanical and electrical connections for industrial power distribution systems.
Designed as part of the Wöhner CRITO® connection technology range, the profile terminal integrates seamlessly with 60Classic centre feed assemblies and can also accommodate rigid copper busbars when installed without mechanical stress.
Typical Applications
- Main incoming power supplies.
- Industrial switchboards.
- 60Classic centre feed systems.
- High-current power distribution.
- OEM electrical equipment.
- Heavy industrial control panels.
