Why Choose the Wöhner 01563 Connection Module?

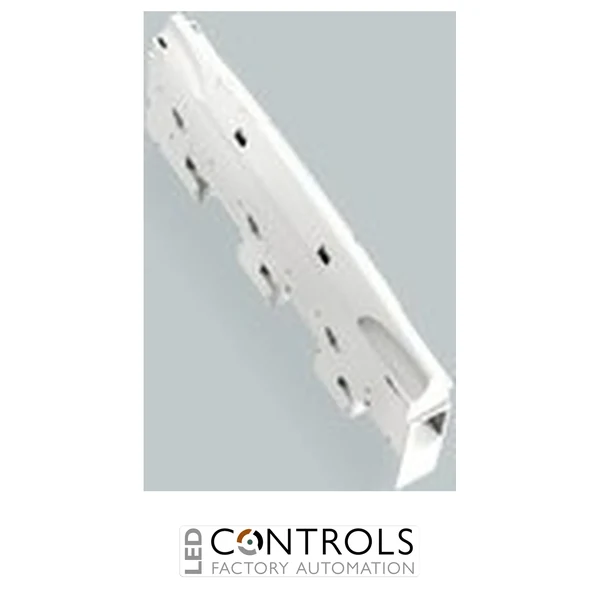

The Wöhner 01563 is a high-performance 3-pole connection module from the CRITO® 60Classic range, designed to provide fast and secure conductor connections on Wöhner busbar systems. Equipped with integrated spring terminals for conductors from 1.5 mm² to 16 mm² (AWG 14–6), it offers tool-free wiring, excellent vibration resistance and dependable electrical performance for industrial power distribution applications.
Suitable for 12, 15, 20, 25 and 30 mm busbars with thicknesses of 5 mm or 10 mm, including section busbars, the Wöhner 01563 is rated for applications up to 80 A. Its compact design makes it ideal for OEM control panels, switchboards and machine-building applications where space-saving, reliable connections are essential.
Manufactured from high-quality, halogen-free insulating materials and supplied with an integrated cover cap, the Wöhner 01563 supports safe installation while meeting the demanding requirements of modern industrial electrical systems.
Key Advantages
- 3-pole connection module with integrated spring terminals.
- Fast, tool-free conductor installation.
- Suitable for conductors from 1.5–16 mm².
- Compatible with 12–30 mm busbars.
- Compact design for efficient panel layouts.
- Integrated cover cap improves operator safety.
Key Features
- Manufacturer: Wöhner.
- Model: 01563.
- CRITO® 60Classic connection module.
- 3-pole configuration.
- Integrated spring terminals.
- Conductor size: 1.5–16 mm² (AWG 14–6).
- Maximum current: 80 A.
- Supplied with integrated cover cap.
Fast, Reliable Spring Terminal Technology
The Wöhner 01563 uses integrated spring-clamp technology to provide consistent contact pressure without requiring screw tightening. This reduces installation time while delivering reliable electrical connections that resist vibration and thermal cycling.
Designed for the Wöhner 60Classic busbar system, the module enables compact and professional switchboard construction while supporting safe, efficient and maintenance-friendly power distribution.
Typical Applications
- Industrial switchboards.
- Machine control panels.
- OEM electrical equipment.
- Motor control centres.
- Power distribution systems.
- Commercial electrical installations.
