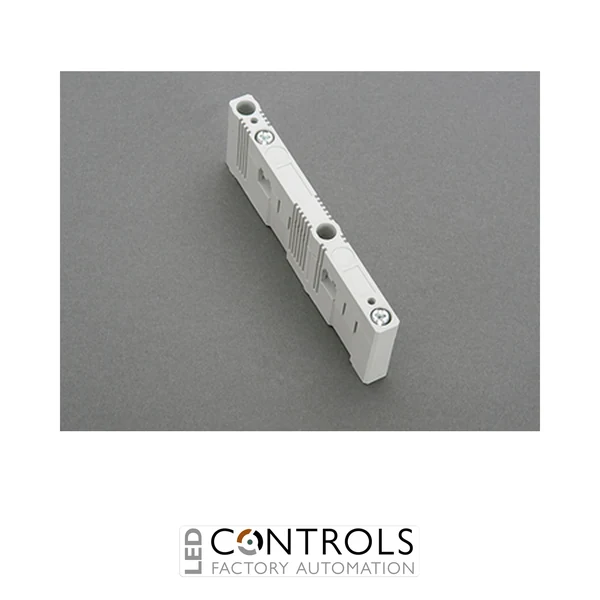

Wöhner 01602 universal 2-pole busbar support with internal screw holes for Wöhner 60Classic systems, suitable for 12, 20 and 30 mm busbars.
£14.69
The Wöhner 01602 is a robust 2-pole universal busbar support designed for the Wöhner 60Classic busbar system. Featuring internal screw holes, it provides secure mechanical support and reliable insulation for flat copper busbars while simplifying installation in industrial switchgear, distribution boards and control panels. It can also be used as a centre support in larger busbar assemblies.
Designed for compatibility with 12, 20 and 30 mm wide busbars in both 5 mm and 10 mm thicknesses, the Wöhner 01602 delivers dependable performance in demanding industrial power distribution applications. Its compact design and halogen-free insulating material make it ideal for new installations and retrofit projects alike.
Manufactured to IEC 61439-1 standards, the Wöhner 01602 offers excellent insulation characteristics and high short-circuit withstand capability, making it a trusted solution for low-voltage power distribution systems worldwide.
The Wöhner 01602 provides secure mechanical support for flat copper busbars while maintaining excellent insulation performance. Its internal fixing arrangement enables simple installation and ensures stable positioning even in demanding industrial environments.
As part of the Wöhner 60Classic platform, the support integrates seamlessly with compatible busbars and accessories, including the Wöhner 01363 end cover. Its ability to function as a centre support makes it especially useful for longer busbar runs and high-performance distribution assemblies.
| Manufacturer | Wöhner |
|---|---|
| Series | 60Classic |
| Model | 01602 |
| Full part number | 01602 000 |
| Product type | Universal busbar support |
| Number of poles | 2 |
| Mounting | Internal screw holes |
| Compatible busbar widths | 12, 20 and 30 mm |
| Compatible busbar thickness | 5 mm and 10 mm |
| Rated voltage (IEC AC) | 800 V |
| Rated voltage (IEC DC) | 1000 V |
| Rated insulation voltage (Ui) | 1000 V AC/DC |
| Rated impulse withstand voltage (Uimp) | 6 kV |
| Maximum permitted DC voltage | 1500 V |
| Rated frequency | 50 / 60 Hz |
| Dimensions (W × H × D) | 13 × 136 × 45 mm |
| Minimum operating temperature | -40°C |
| Material | Halogen-free insulating material |
| System compatibility | Wöhner 60Classic |
| Compatible end cover | Wöhner 01363 |
| EAN | 4021267016029 |
| Standards | IEC 61439-1:2020 |
| HS Code | 85469010 |
| Country of Manufacture | Germany |
The Wöhner 01602 is a 2-pole universal busbar support designed to securely mount flat copper busbars in Wöhner 60Classic power distribution systems.
It supports busbars measuring 12, 20 and 30 mm wide with thicknesses of 5 mm or 10 mm.
Yes. The design allows it to be used both as a standard support and as a centre support for longer busbar installations.
Yes. It is manufactured from halogen-free insulating material.
The recommended end cover for the Wöhner 01602 is the Wöhner 01363.
Wöhner 60Classic busbar supports are trusted by electrical engineers and panel builders worldwide for delivering safe, reliable and durable support solutions for industrial power distribution systems.
