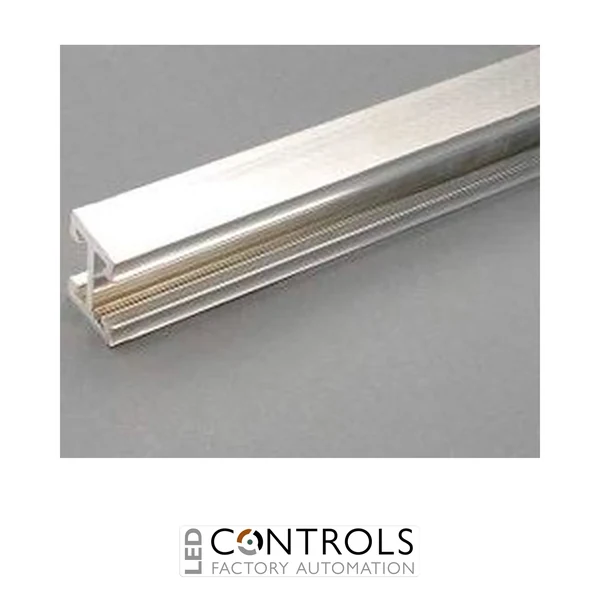

Wöhner 01609 double-T section copper busbar with 500 mm² cross-sectional area, 2.40 m length and tin-plated Cu-ETP construction for Wöhner 60Classic centre feed units.
£245.93
The Wöhner 01609 is a premium double-T section copper busbar with a 500 mm² cross-sectional area, designed for the Wöhner 60Classic centre feed unit. Manufactured from high-conductivity Cu-ETP copper (CW004A) to EN 13601 and supplied with a factory-applied tin-plated finish, it delivers excellent electrical conductivity, outstanding corrosion resistance and dependable long-term performance in demanding industrial power distribution systems.
The tin-plated surface reduces the preparation required at contact points while protecting the copper against oxidation and aggressive industrial environments. With an overall length of 2.40 metres, the Wöhner 01609 is ideally suited to high-current switchgear assemblies, low-voltage distribution equipment and industrial control panels.
Designed for applications carrying currents of up to 1200 A under suitable installation conditions, the Wöhner 01609 combines excellent mechanical strength with low electrical resistance, making it a reliable choice for professional power distribution installations.
The Wöhner 01609 has been engineered for industrial applications where dependable current carrying capacity and long-term reliability are essential. Its double-T profile provides excellent rigidity while ensuring efficient electrical performance in demanding switchgear and distribution systems.
The factory-applied tin plating reduces installation time by minimising contact preparation while providing effective protection against corrosion. This makes the 01609 particularly suitable for industrial environments where reliability and low maintenance are key requirements.
| Manufacturer | Wöhner |
|---|---|
| Series | 60Classic |
| Model | 01609 |
| Full part number | 01609 000 |
| Type number | H500-L |
| Product type | Double-T section busbar |
| Cross-sectional area | 500 mm² |
| Material | Cu-ETP copper (CW004A) to EN 13601 |
| Copper purity | 99.9% |
| Strength class | R300 (300 N/mm²) |
| Surface finish | Tin-plated |
| Length | 2.40 m |
| Rated current | Up to 1200 A (installation dependent) |
| System compatibility | Wöhner 60Classic Centre Feed Unit |
| EAN | 4021267016098 |
| Standards | IEC 61439-1:2020, UL 508 |
| Approvals | CSA, UL, DNV GL |
| Pack quantity | 1 |
| HS Code | 74071000 |
| Country of Manufacture | Belgium |
The Wöhner 01609 is a high-current double-T section copper busbar designed for Wöhner 60Classic centre feed units and industrial power distribution systems.
The Wöhner 01609 has a 500 mm² cross-sectional area.
It is manufactured from 99.9% Cu-ETP copper (CW004A) to EN 13601 and is supplied with a tin-plated finish.
The standard busbar length is 2.40 metres.
The tin-plated finish reduces contact preparation during installation while providing excellent protection against oxidation and aggressive industrial environments.
Wöhner copper busbars are trusted by switchgear manufacturers and electrical engineers worldwide for delivering exceptional conductivity, long-term durability and dependable performance in industrial high-current power distribution systems.
