Why Choose the Wöhner 01616 Flat Terminal?

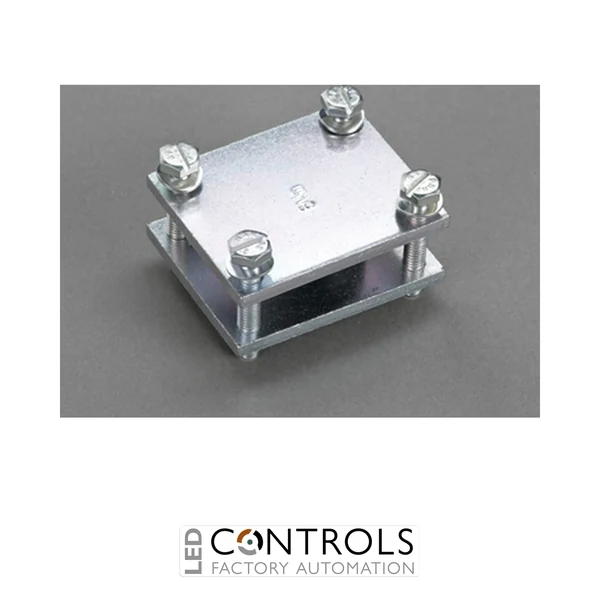

The Wöhner 01616 is a robust flat terminal (busbar connector) designed to provide a secure mechanical connection between a 40 mm flat busbar and a 32 mm laminated copper conductor. Manufactured for the renowned Wöhner 60Classic busbar system, this component enables fast, reliable assembly of industrial power distribution systems and switchgear.
Designed specifically for mechanical busbar connections, the 01616 simplifies panel assembly while maintaining a compact installation footprint. Its halogen-free construction and compliance with IEC 61439-1 make it suitable for demanding industrial environments where safety, reliability and long service life are essential.
The flat terminal is commonly used by panel builders and OEM manufacturers to connect busbars with laminated copper conductors within switchboards, motor control centres and low-voltage distribution equipment. As a purely mechanical connection component, it does not carry current itself but provides a secure mounting solution.
Key Advantages
- Designed for connecting 40 mm flat busbars to 32 mm laminated copper conductors.
- Compatible with the Wöhner 60Classic busbar system.
- Compact design simplifies switchgear assembly.
- Halogen-free construction for improved safety.
- Mechanical connector requiring no electrical current carrying function.
- Manufactured to IEC 61439-1 standards.
Key Features
- Wöhner 01616 flat terminal.
- Mechanical busbar connector.
- Suitable for 40 mm busbars.
- Accepts 32 mm laminated copper conductors.
- Part of the Wöhner 60Classic system.
- Halogen-free material.
- Compact industrial design.
- Suitable for power distribution equipment and switchgear.
Reliable Busbar Connection for Industrial Switchgear
The Wöhner 01616 provides a dependable mechanical interface between flat busbars and laminated copper conductors, ensuring secure installation within modern low-voltage electrical assemblies. Its compact design allows efficient use of panel space while supporting straightforward assembly and maintenance.
Designed for professional electrical panel builders, the connector integrates seamlessly into Wöhner busbar systems, helping create organised, reliable and serviceable power distribution installations.
Typical Applications
- Industrial switchgear.
- Power distribution panels.
- Motor control centres.
- Low-voltage busbar systems.
- OEM electrical equipment.
- Industrial control cabinets.
