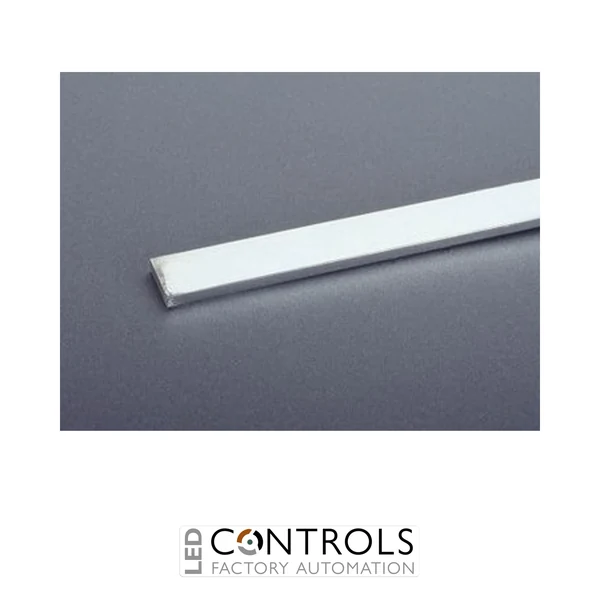

Wöhner 01620 tin-plated Cu-ETP copper busbar measuring 20 × 5 mm with a 100 mm² cross-sectional area and 2.4 metre length for industrial power distribution systems.
£69.74
The Wöhner 01620 is a premium tin-plated copper busbar designed for dependable power distribution in industrial switchgear, control panels and low-voltage electrical installations. Manufactured from high-purity Cu-ETP copper (CW004A) in accordance with EN 13601, it provides outstanding electrical conductivity while the factory-applied tin plating offers excellent corrosion resistance and simplifies installation. The busbar is part of the renowned Wöhner 60Classic busbar system.
The tin-plated finish significantly reduces the preparation required when creating electrical connections, saving installation time while protecting the copper against aggressive industrial environments. This makes the Wöhner 01620 an ideal solution for panel builders, OEM manufacturers and electrical contractors seeking reliable long-term performance.
With dimensions of 20 × 5 mm, a 2.4 metre length and a 100 mm² cross-sectional area, the Wöhner 01620 is suitable for high-current power distribution applications in switchboards, motor control centres and industrial machinery. Under IEC conditions it has a verified current rating of 320 A.
Copper busbars provide a low-resistance path for carrying high electrical currents through switchgear and distribution systems. Their large cross-sectional area helps minimise voltage drop and energy losses while ensuring dependable operation in demanding industrial environments.
The Wöhner 01620 combines the conductivity of high-purity copper with the durability of a corrosion-resistant tin-plated finish, providing an ideal solution for professional panel builders and industrial electrical installations requiring long service life and reliable performance.
| Manufacturer | Wöhner |
|---|---|
| Series | 60Classic |
| Model | 01620 |
| Product type | Tin-plated copper busbar |
| Material | Cu-ETP copper (CW004A) |
| Finish | Tin-plated |
| Dimensions | 20 × 5 mm |
| Cross-sectional area | 100 mm² |
| Length | 2.4 m |
| Rated current (IEC 30 K) | 320 A |
| Maximum load (UL 508) | 362 A |
| Minimum operating temperature | -40°C |
| Standards | IEC 61439-1:2020, UL 508 |
| Approvals | UL, CSA, DNV GL |
| Weight | Approx. 2.14 kg |
| EAN | 4021267016203 |
| HS Code | 74071000 |
| Country of Manufacture | Belgium |
The Wöhner 01620 is used as a tin-plated copper busbar for distributing electrical power within industrial switchgear, control panels and low-voltage power distribution systems.
The busbar measures 20 × 5 mm, has a 100 mm² cross-sectional area and is supplied in a 2.4 metre length.
Under IEC conditions the Wöhner 01620 has a verified current rating of 320 A, with a maximum UL 508 load of 362 A.
The tin-plated finish improves corrosion resistance and reduces preparation time when making electrical connections.
The Wöhner 01620 is designed for use with the Wöhner 60Classic busbar system.
Wöhner busbar systems are widely specified by switchgear manufacturers and industrial engineers for reliable power distribution, robust construction and long-term performance in demanding electrical installations.
