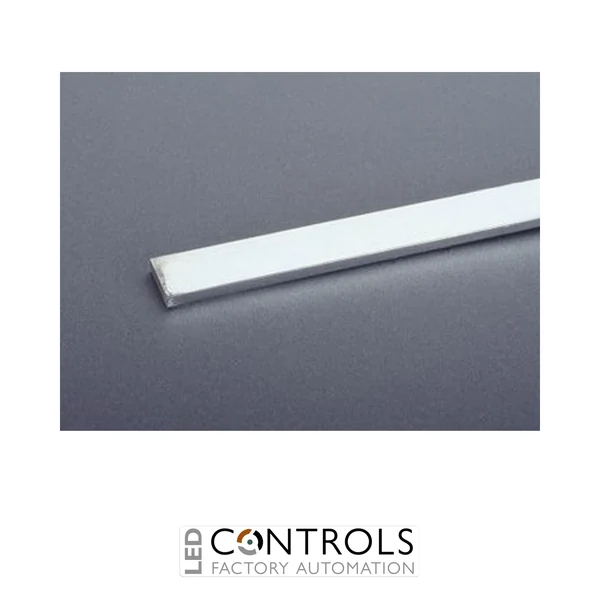

Wöhner 01622 tin-plated Cu-ETP copper busbar measuring 30 × 5 mm with a 150 mm² cross-sectional area, 2.4 metre length and tested 450 A current capacity for 60Classic power distribution systems.
£102.47
The Wöhner 01622 is a high-quality tin-plated copper busbar designed for reliable electrical power distribution in industrial switchgear, control panels and low-voltage busbar systems. Manufactured from 99.9% Cu-ETP copper (CW004A) in accordance with EN 13601, it combines excellent electrical conductivity with robust mechanical strength for demanding industrial installations.
Its factory-applied tin-plated finish reduces the preparation required at electrical contact points and provides effective protection against aggressive environmental conditions. This helps panel builders and electrical engineers achieve dependable connections while reducing assembly time and supporting long-term system reliability.
With dimensions of 30 × 5 mm, a 2.4 metre length and a 150 mm² cross-sectional area, the Wöhner 01622 is suitable for high-current applications within the Wöhner 60Classic busbar system. Its tested current capacity of 450 A at a 30 K temperature rise makes it ideal for industrial power distribution assemblies.
Copper busbars provide a low-resistance electrical path for distributing high currents throughout switchgear, control panels and industrial power systems. Their solid construction helps minimise voltage drop and power losses while supporting compact, organised electrical assemblies.
The Wöhner 01622 combines high-purity copper with a corrosion-resistant tin-plated surface, helping ensure consistent contact quality and dependable electrical performance. Its tested current capacity and compatibility with Wöhner 60Classic components make it a practical solution for professional panel building and industrial system integration.
| Manufacturer | Wöhner |
|---|---|
| Series | 60Classic |
| Model | 01622 |
| Full part number | 01622 000 |
| Product type | Tin-plated copper busbar |
| Material | Cu-ETP copper (CW004A), 99.9% copper |
| Finish | Tin-plated |
| Dimensions | 30 × 5 mm |
| Cross-sectional area | 150 mm² |
| Length | 2.4 m |
| Tested current at 30 K | 450 A |
| Maximum load according to UL 508 | 500 A |
| Strength class | R300, 300 N/mm² |
| Minimum operating temperature | -40°C |
| Power dissipation at 80% load | 41 W |
| Power dissipation at full load | 64 W |
| Standards | IEC 61439-1:2020, UL 508 |
| Approvals | CSA, UL, DNV GL |
| Halogen-free | Yes |
| Weight | Approx. 3.21 kg |
| EAN | 4021267016227 |
| Pack quantity | 1 |
| HS Code | 74071000 |
| Country of Manufacture | Belgium |
The Wöhner 01622 is used to distribute electrical power within industrial switchgear, control panels and Wöhner 60Classic busbar systems.
The busbar measures 30 × 5 mm, has a cross-sectional area of 150 mm² and is supplied in a 2.4 metre length.
The busbar has a tested current capacity of 450 A at a 30 K temperature rise and a maximum load of 500 A according to UL 508, subject to the installation conditions.
The tin-plated finish reduces contact-point preparation, improves resistance to oxidation and protects the copper against aggressive environmental conditions.
The Wöhner 01622 is designed for use with the Wöhner 60Classic busbar system.
Wöhner busbar components are widely used by panel builders, switchgear manufacturers and industrial engineers to create compact, reliable and efficient low-voltage power distribution systems.
