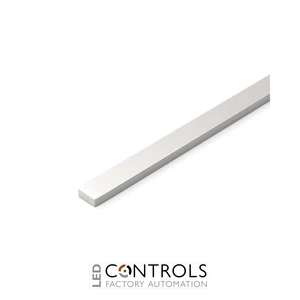

Wöhner 01623 tin-plated Cu-ETP copper busbar measuring 12 × 10 mm with a 120 mm² cross-sectional area and 2.4 metre length for industrial power distribution systems.
£85.23
The Wöhner 01623 is a premium tin-plated copper busbar engineered for reliable power distribution in industrial switchgear, control panels and low-voltage electrical systems. Manufactured from high-purity Cu-ETP copper (CW004A) to EN 13601, it combines outstanding electrical conductivity with excellent mechanical strength and long-term corrosion resistance through its factory-applied tin-plated finish. It is designed for use with the Wöhner 60Classic and 30Compact 3P busbar systems.
The tin-plated surface significantly reduces preparation time when creating electrical connections while protecting the copper against oxidation and aggressive industrial environments. This enables faster installation and dependable long-term performance for panel builders, OEM manufacturers and industrial electrical contractors.
With dimensions of 12 × 10 mm, a 2.4 metre length and a 120 mm² cross-sectional area, the Wöhner 01623 is suitable for demanding industrial power distribution applications. Under IEC test conditions it has a verified current rating of 360 A, making it ideal for modern switchgear and busbar assemblies.
Copper busbars provide a low-resistance path for carrying high electrical currents throughout industrial switchgear and distribution systems. Their solid construction minimises voltage drop and energy losses while ensuring dependable performance in demanding industrial environments.
The Wöhner 01623 combines the conductivity of high-purity copper with a corrosion-resistant tin-plated finish, making it an ideal solution for professional electrical installations where long service life, reliability and simplified installation are essential.
| Phase | Three Phase |
|---|---|
| Manufacturer | Wöhner |
| Series | 60Classic / 30Compact 3P |
| Model | 01623 |
| Full part number | 01623 000 |
| Product type | Tin-plated copper busbar |
| Material | Cu-ETP copper (CW004A) |
| Finish | Tin-plated |
| Dimensions | 12 × 10 mm |
| Cross-sectional area | 120 mm² |
| Length | 2.4 m |
| Rated current (IEC 30 K) | 360 A |
| Maximum load (UL 508) | 300 A |
| Minimum operating temperature | -40°C |
| Standards | IEC 61439-1:2020, UL 508 |
| Approvals | UL, CSA, DNV GL |
| Weight | Approx. 2.57 kg |
| EAN | 4021267016234 |
| HS Code | 74071000 |
| Country of Manufacture | Belgium |
The Wöhner 01623 is used as a tin-plated copper busbar for distributing electrical power within industrial switchgear, control panels and low-voltage power distribution systems.
The busbar measures 12 × 10 mm, has a 120 mm² cross-sectional area and is supplied in a 2.4 metre length.
Under IEC test conditions the Wöhner 01623 has a verified current rating of 360 A, with a maximum UL 508 load of 300 A.
The tin-plated finish improves corrosion resistance, protects against oxidation and reduces preparation time when making electrical connections.
The Wöhner 01623 is designed for use with the Wöhner 60Classic and 30Compact 3P busbar systems.
Wöhner busbar systems are trusted by switchgear manufacturers and industrial engineers worldwide for dependable power distribution, high-quality construction and long-term performance in demanding electrical installations.
