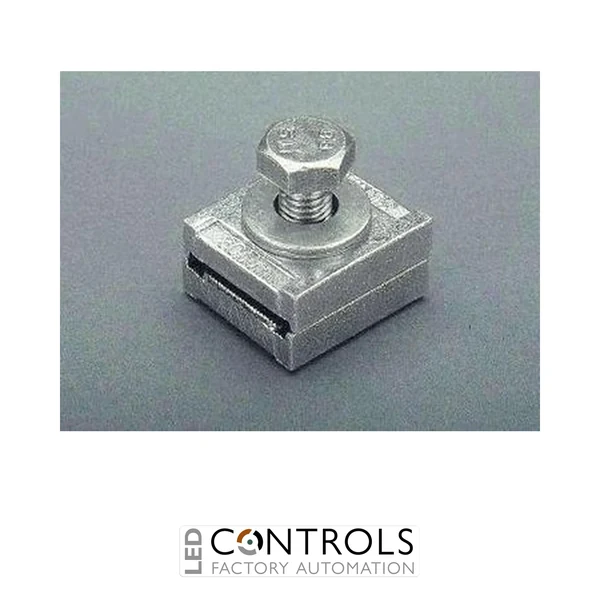

Wöhner 01823 busbar connecting terminal for longitudinal connection of 20, 25 and 30 mm busbars in 60Classic power distribution systems.
£17.12
The Wöhner 01823 is a robust busbar connecting terminal designed to create secure longitudinal connections between identical copper busbars in industrial power distribution systems. As part of the trusted Wöhner 60Classic busbar system, it delivers reliable electrical continuity while simplifying the expansion and modification of switchgear and distribution assemblies.
Designed for 20 mm, 25 mm and 30 mm busbars with thicknesses of 5 mm or 10 mm, the Wöhner 01823 provides a dependable low-resistance connection for high current applications. Its compact design allows adjacent busbar systems to be joined while maintaining excellent mechanical strength and electrical performance.
With a 630 A IEC current rating and a heavy-duty M12 screw clamp connection, this connecting terminal is ideal for panel builders, switchgear manufacturers and OEM machine builders requiring reliable busbar extension and interconnection solutions in low voltage power distribution systems.
Longitudinal busbar connecting terminals allow adjacent busbars to be joined securely while maintaining excellent electrical conductivity and mechanical stability. They provide an efficient solution for extending or linking busbar systems in industrial switchgear and power distribution equipment.
The Wöhner 01823 is designed for high current applications where dependable electrical performance and simple installation are essential. Its compact construction and compatibility with the Wöhner 60Classic system make it an ideal choice for modern industrial electrical installations.
| Current | 756 A |
|---|---|
| Manufacturer | Wöhner |
| Series | 60Classic |
| Model | 01823 |
| Product type | Busbar connecting terminal |
| Rated current (IEC) | 630 A |
| Rated current (UL) | 756 A |
| Rated voltage | 690 V AC |
| Maximum voltage | 1000 V AC / 1500 V DC |
| Rated peak withstand current (Ipk) | 67.1 kA |
| Compatible busbars | 20, 25 and 30 × 5 mm or 10 mm |
| Connection type | M12 screw clamp |
| Dimensions (W × H × D) | 40 × 37 × 20 mm |
| Permitted busbar offset | 2 mm |
| System spacing | 13 to 20 mm |
| Halogen free | Yes |
| HS Code | 85369010 |
| Country of Manufacture | Germany |
The Wöhner 01823 is used to create secure longitudinal connections between identical copper busbars in industrial power distribution systems.
It is compatible with 20 mm, 25 mm and 30 mm busbars with thicknesses of 5 mm or 10 mm.
The connecting terminal has a rated current of 630 A IEC and 756 A UL.
The terminal uses a robust M12 screw clamp connection to provide secure mechanical and electrical performance.
The Wöhner 01823 is designed for use with the 60Classic busbar system.
Wöhner busbar connection technology is trusted worldwide by electrical engineers, panel builders and OEM manufacturers to deliver reliable, efficient and standards-compliant power distribution solutions.
