Why Choose the Wöhner 01827 Busbar Connecting Terminal?

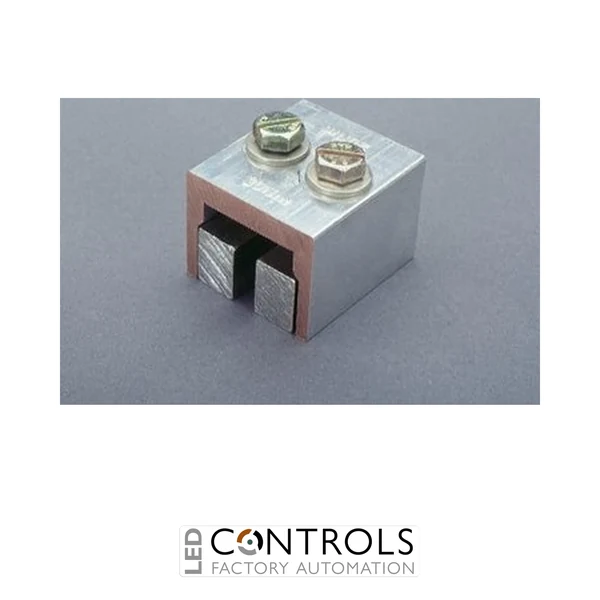

The Wöhner 01827 is a heavy-duty busbar connecting terminal designed for secure longitudinal connections between double-T section copper busbars in industrial power distribution systems. As part of the proven Wöhner 60Classic busbar system, it enables reliable, low-resistance electrical connections while simplifying the expansion and interconnection of high current switchgear assemblies.
Designed specifically for double-T section busbars, the Wöhner 01827 features a compact 50 mm body and robust M8 screw clamp connection that delivers excellent mechanical strength and dependable electrical performance. Its compact design allows adjacent busbar systems to be joined efficiently while maintaining high current carrying capability.
With a verified 1600 A IEC current capacity and 1400 A UL rating, the Wöhner 01827 is ideal for switchgear manufacturers, panel builders and OEM machine builders requiring reliable busbar interconnections for demanding industrial power distribution applications.
Key Advantages
- Heavy-duty busbar connecting terminal for double-T busbars.
- 1600 A IEC current capacity for high current installations.
- Compact 50 mm design for efficient busbar interconnections.
- Robust M8 screw clamp connection.
- Compatible with the Wöhner 60Classic busbar system.
- Halogen-free construction for modern industrial installations.
Key Features
- Wöhner 60Classic system component.
- Part number: 01827.
- Current capacity: 1600 A IEC.
- Rated voltage: 690 V AC.
- Designed for double-T section busbars.
- M8 screw clamp electrical connection.
- Suitable for longitudinal busbar connections.
- Designed for industrial switchgear and power distribution systems.
Reliable High Current Busbar Interconnections
Longitudinal busbar connecting terminals provide secure mechanical and electrical connections between adjacent busbars while maintaining low contact resistance and excellent current carrying capability. They are widely used to extend or interconnect busbar systems within industrial switchgear and electrical distribution equipment.
The Wöhner 01827 is engineered for demanding high current applications where dependable electrical performance and long service life are essential. Its compatibility with the Wöhner 60Classic system makes it an ideal solution for modern industrial power distribution installations.
Typical Applications
- Industrial switchboards.
- Main power distribution systems.
- Busbar extensions.
- Motor control centres.
- OEM machinery.
- Industrial automation systems.
