Why Choose the Wöhner 01829 Busbar Connecting Terminal?

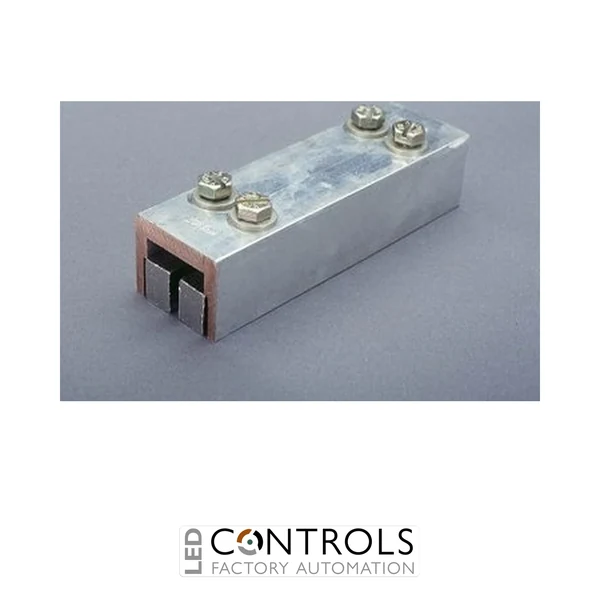

The Wöhner 01829 is a heavy-duty busbar connecting terminal engineered for secure longitudinal connections between double-T section copper busbars in industrial power distribution systems. As part of the renowned Wöhner 60Classic busbar system, it provides dependable electrical continuity while allowing busbar systems to be extended or interconnected in demanding switchgear and low voltage distribution assemblies.
With its extended 150 mm length, the Wöhner 01829 is ideal where greater spacing is required between adjoining busbar systems. Its robust M8 screw clamp connection ensures excellent mechanical strength, low contact resistance and reliable long-term performance under high electrical loads.
Offering a verified 1600 A IEC current capacity and 1400 A UL rating, this busbar connecting terminal is widely used by switchgear manufacturers, panel builders and OEM machine builders requiring safe, standards-compliant busbar interconnections for industrial power distribution systems.
Key Advantages
- Heavy-duty busbar connecting terminal for double-T section busbars.
- 1600 A IEC current capacity for demanding industrial installations.
- 150 mm length suitable for wider busbar spacing.
- Robust M8 screw clamp connection ensures secure electrical performance.
- Compatible with the Wöhner 60Classic busbar system.
- Halogen-free construction for modern industrial installations.
Key Features
- Wöhner 60Classic system component.
- Part number: 01829.
- Current capacity: 1600 A IEC.
- Rated voltage: 690 V AC.
- Designed for double-T section busbars.
- 150 mm connector length.
- M8 screw clamp electrical connection.
- Suitable for industrial switchgear and power distribution systems.
Reliable Longitudinal Busbar Connections
Longitudinal busbar connecting terminals provide secure electrical and mechanical connections between adjacent busbars while maintaining low contact resistance and excellent current carrying capability. They are widely used to extend or interconnect busbar systems within industrial switchgear and power distribution equipment.
The Wöhner 01829 is specifically designed for installations requiring increased spacing between double-T section busbars while maintaining dependable high current performance. Its compatibility with the Wöhner 60Classic system makes it an excellent choice for industrial electrical distribution projects.
Typical Applications
- Industrial switchboards.
- Main power distribution systems.
- Busbar extensions.
- Motor control centres.
- OEM machinery.
- Industrial automation systems.
