Why Choose the Wöhner 01886 Busbar Connecting Terminal?

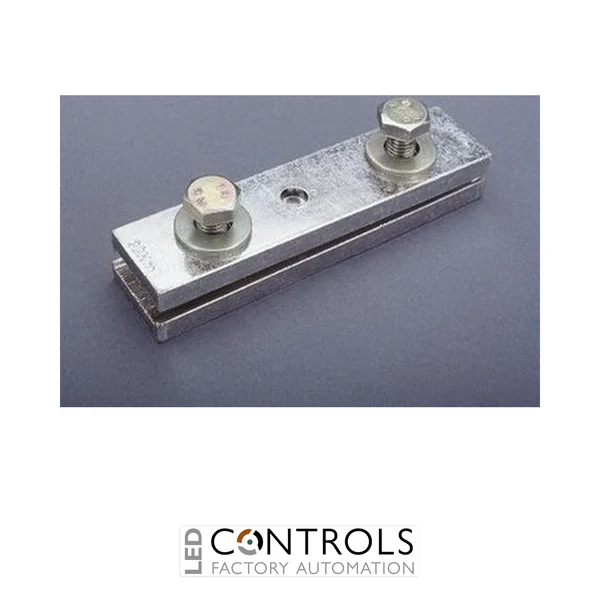

The Wöhner 01886 is a robust busbar connecting terminal designed for creating secure longitudinal connections between identical flat copper busbars in industrial power distribution systems. As part of the proven Wöhner 60Classic busbar system, it enables reliable electrical continuity while allowing switchgear assemblies and distribution systems to be expanded quickly and efficiently.
Designed for 20 mm, 25 mm and 30 mm busbars with thicknesses of 5 mm or 10 mm, the Wöhner 01886 features an extended 150 mm connection length for installations requiring greater spacing between busbar sections. Its heavy-duty construction provides excellent mechanical strength and low contact resistance, ensuring dependable performance in demanding industrial environments.
With a 630 A IEC rated current and 756 A UL rating, the Wöhner 01886 is widely used by panel builders, switchgear manufacturers and OEM machine builders requiring safe, standards-compliant busbar interconnections within low voltage electrical distribution systems.
Key Advantages
- Heavy-duty busbar connecting terminal for flat copper busbars.
- Compatible with 20 mm, 25 mm and 30 mm busbars.
- 630 A IEC rated current for industrial applications.
- 150 mm connection length for increased busbar spacing.
- Secure heavy-duty screw clamp connection.
- Compatible with the Wöhner 60Classic busbar system.
Key Features
- Wöhner 60Classic system component.
- Part number: 01886.
- Rated current: 630 A IEC.
- Rated current (UL): 756 A.
- Rated voltage: 690 V AC.
- Compatible with 20, 25 and 30 × 5 mm or 10 mm busbars.
- 150 mm connector length.
- Designed for industrial switchgear and power distribution systems.
Reliable Longitudinal Busbar Connections
Longitudinal busbar connecting terminals provide secure mechanical and electrical connections between adjoining busbars while maintaining low contact resistance and excellent current carrying capability. They simplify the extension of busbar systems and help maintain reliable electrical performance throughout industrial switchgear installations.
The Wöhner 01886 is specifically designed for installations requiring greater spacing between flat copper busbars. Its heavy-duty construction and compatibility with the Wöhner 60Classic system make it an ideal solution for modern industrial power distribution assemblies.
Typical Applications
- Industrial switchboards.
- Main power distribution panels.
- Busbar extensions.
- Motor control centres.
- OEM machinery.
- Industrial automation systems.
