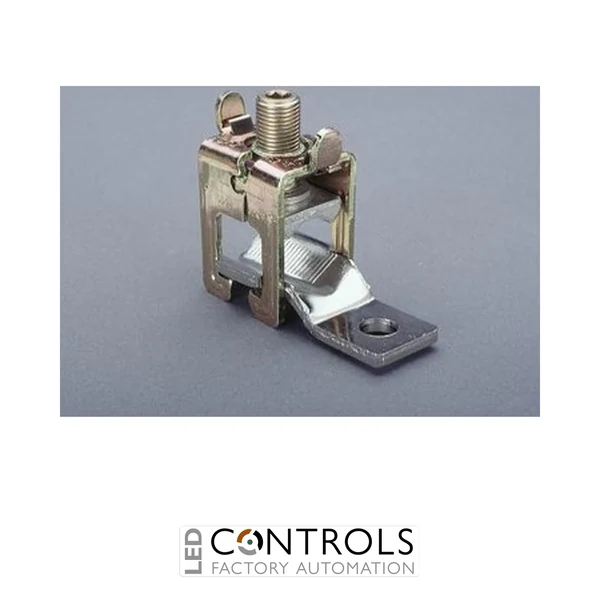

Wöhner 01890 connecting latch with brace terminal for M10 or M12 screw connections, suitable for copper and aluminium conductors from 120–300 mm².
£24.04
The Wöhner 01890 is a heavy-duty connecting latch with brace terminal designed for terminating large copper and aluminium conductors in industrial power distribution systems. It provides a secure mechanical and electrical connection between cables and busbar systems, making it ideal for switchgear, panel building and OEM power distribution applications.
Engineered for M10 or M12 screw connections, the terminal accommodates Cu and Al conductors from 120–300 mm². Its brace terminal design securely embraces the cable, while clearly marked tightening torque and conductor size information simplify installation and help ensure reliable, standards-compliant connections.
Rated at 600 A and 690 V AC, the Wöhner 01890 complies with IEC 61439-1 and IEC 60999 standards, making it suitable for demanding industrial electrical installations requiring dependable high-current cable terminations.
Connecting latches with brace terminals provide a dependable interface between high-current conductors and busbar systems. Their robust design minimises contact resistance while delivering excellent mechanical retention, making them ideal for demanding industrial switchgear and electrical distribution equipment.
The Wöhner 01890 is designed for straightforward installation with both copper and aluminium conductors, helping panel builders and electrical engineers achieve reliable, standards-compliant cable terminations in modern power distribution systems.
| Manufacturer | Wöhner |
|---|---|
| Series | 60Classic |
| Model | 01890 |
| Product type | Connecting latch with brace terminal |
| Rated current (IEC) | 600 A |
| Rated voltage | 690 V AC |
| Maximum voltage | 1000 V AC / 1500 V DC |
| Compatible conductor material | Copper and Aluminium |
| Conductor size | 120–300 mm² (fine stranded), 95–300 mm² (multi-stranded) |
| Connection | M10 or M12 screw |
| Tightening torque | 30 Nm |
| Dimensions (W × H × D) | 40 × 49 × 88 mm |
| Standards | IEC 61439-1, IEC 60999-1, IEC 60999-2 |
| Halogen free | Yes |
| Pack quantity | 3 |
| HS Code | 85369010 |
| Country of Manufacture | Germany |
The Wöhner 01890 provides a secure connection between high-current copper or aluminium cables and industrial busbar systems.
It accepts copper and aluminium conductors from 120–300 mm² (fine stranded) and 95–300 mm² (multi-stranded).
The connecting latch is designed for M10 or M12 screw connections.
Yes. It is approved for aluminium conductors, although the manufacturer's maintenance recommendations for aluminium should always be followed.
The Wöhner 01890 has a rated current of 600 A under IEC standards.
Wöhner connection technology is trusted worldwide by switchgear manufacturers, panel builders and OEM machine builders to provide safe, reliable and efficient industrial power distribution solutions.
