Why Choose the Wöhner 01906 Profile Terminal?

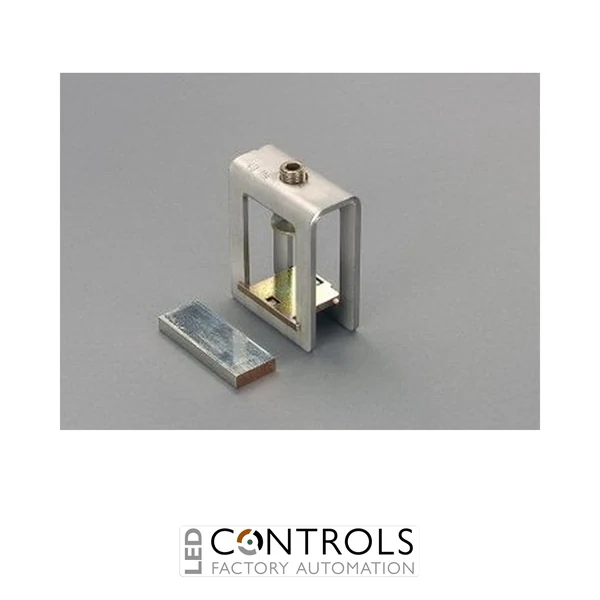

The Wöhner 01906 is a heavy-duty CRITO® profile terminal designed for making secure high-current connections to double-T section busbars in industrial power distribution systems. As part of the proven Wöhner 60Classic centre feed system, it provides a dependable connection for large copper conductors while maintaining low contact resistance and excellent mechanical stability.
Suitable for copper conductors from 200 to 1200 mm², the Wöhner 01906 features a generous 51 × 5–28 mm terminal space, allowing the connection of large cable lugs as well as laminated copper conductors. It can also clamp solid copper flat bars provided they are installed without mechanical stress.
With a verified 1600 A IEC current rating and a 1200 A UL rating, the Wöhner 01906 is an ideal solution for switchgear manufacturers, panel builders and OEM machine builders requiring safe, reliable and standards-compliant high-current conductor terminations.
Key Advantages
- Heavy-duty CRITO® profile terminal for double-T section busbars.
- Suitable for 200–1200 mm² copper conductors.
- 1600 A IEC current rating.
- Large 51 × 5–28 mm terminal space.
- Can also clamp solid copper flat bars when mechanically unstressed.
- Designed for the Wöhner 60Classic centre feed system.
Key Features
- Manufacturer: Wöhner.
- Part number: 01906.
- Product type: CRITO® profile terminal.
- Rated current: 1600 A IEC.
- Rated current (UL): 1200 A.
- Rated voltage: 690 V AC.
- Designed for double-T section busbars.
- Suitable for industrial switchgear and power distribution systems.
Reliable High Current Busbar Connections
Profile terminals provide a secure electrical interface between large copper conductors and industrial busbar systems. Their robust construction ensures low resistance, excellent mechanical strength and dependable long-term performance in demanding switchgear and power distribution installations.
The Wöhner 01906 is specifically engineered for high-current centre feed applications using double-T section busbars. Its large conductor capacity and heavy-duty construction make it an excellent choice for modern industrial electrical distribution systems.
Typical Applications
- Industrial switchboards.
- Centre feed units.
- Main power distribution systems.
- Motor control centres.
- OEM machinery.
- Industrial automation systems.
