Why Choose the Wöhner 01907 CRITO® Profile Terminal?

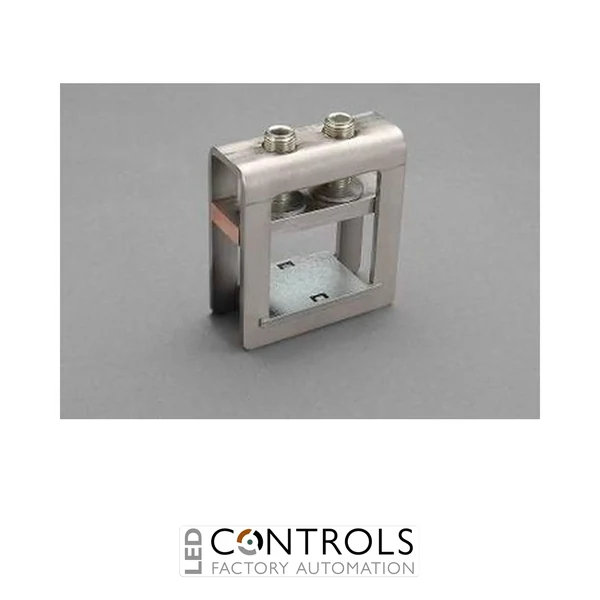

The Wöhner 01907 is a heavy-duty CRITO® profile terminal designed to provide secure, high-current connections to double-T section busbars in industrial power distribution systems. As part of the proven Wöhner 60Classic centre feed system, it enables safe, low-resistance connections for large copper conductors while maintaining excellent mechanical stability and long-term reliability.
Designed for 250–1260 mm² copper conductors, the Wöhner 01907 features a spacious 64 × 5–28 mm terminal space, making it suitable for large cable lugs, laminated copper conductors and rigid copper busbars installed without mechanical stress. Its robust construction ensures dependable performance in demanding switchgear and power distribution applications.
With a verified 1600 A IEC current rating and a 1400 A UL rating, the Wöhner 01907 is ideal for switchgear manufacturers, panel builders and OEM machine builders requiring reliable, standards-compliant high-current conductor terminations.
Key Advantages
- Heavy-duty CRITO® profile terminal for double-T section busbars.
- Suitable for 250–1260 mm² copper conductors.
- 1600 A IEC current rating for demanding industrial applications.
- Large 64 × 5–28 mm terminal space.
- Can clamp rigid copper busbars when installed without mechanical tension.
- Designed for the Wöhner 60Classic centre feed system.
Key Features
- Manufacturer: Wöhner.
- Part number: 01907.
- Product type: CRITO® profile terminal.
- Rated current: 1600 A IEC.
- Rated current (UL): 1400 A.
- Rated voltage: 690 V AC.
- Designed for double-T section busbars.
- Suitable for industrial switchgear and power distribution systems.
Reliable High Current Busbar Connections
CRITO® profile terminals provide a secure electrical interface between large copper conductors and industrial busbar systems. Their robust design delivers low contact resistance, excellent mechanical strength and dependable long-term performance in demanding switchgear and electrical distribution installations.
The Wöhner 01907 is specifically engineered for high-current centre feed applications using double-T section busbars. Its generous conductor capacity and durable construction make it an excellent solution for modern industrial electrical distribution systems.
Typical Applications
- Industrial switchboards.
- Centre feed units.
- Main power distribution systems.
- Motor control centres.
- OEM machinery.
- Industrial automation systems.
