Why Choose the Wöhner 05780 Insulator?

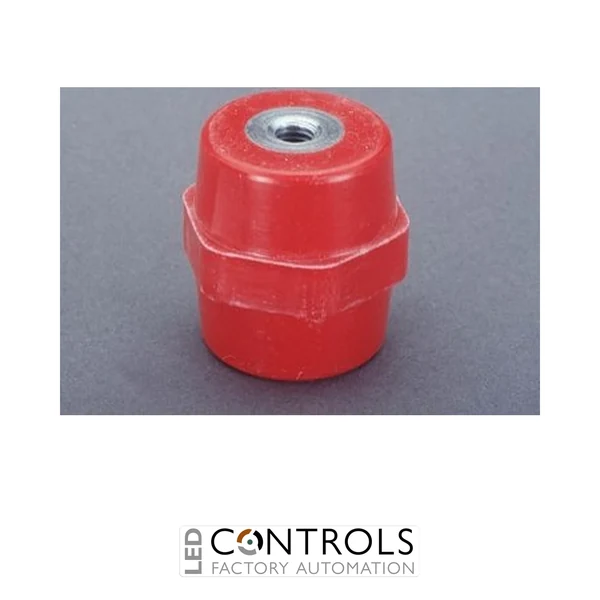

The Wöhner 05780 is a high-quality panel mounting insulator designed to provide secure electrical isolation and mechanical support within low voltage switchgear, busbar systems and industrial control panels. Manufactured by Wöhner, this robust insulator features M6 female threads on both sides, making it ideal for mounting conductive components while maintaining safe electrical separation.
Designed for demanding industrial environments, the Wöhner 05780 offers excellent mechanical strength, high dielectric performance and a compact 30 mm profile. Its halogen-free construction and compliance with IEC standards make it a dependable choice for panel builders, OEMs and electrical engineers.
With a rated insulation voltage of 1500 V AC/DC, a 30 mm height and durable insulating material, this stand-off insulator is suitable for switchboards, busbar assemblies, power distribution equipment and custom electrical installations requiring reliable insulation and support.
Key Advantages
- Compact 30 mm stand-off insulator for industrial electrical assemblies.
- M6 female thread on both sides for secure fixing.
- 1500 V AC/DC rated insulation voltage.
- Halogen-free construction for improved environmental compliance.
- Suitable for switchgear, busbar systems and control panels.
- Reliable mechanical support while maintaining electrical isolation.
Key Features
- Manufacturer: Wöhner.
- Part number: 05780.
- Female thread M6 x 30 on both sides.
- 30 mm height with 30 mm width across flats.
- Rated voltage: 1500 V AC/DC.
- Halogen-free insulating material.
- Suitable for flat surface installation.
- Designed for industrial switchgear and busbar applications.
Reliable Electrical Isolation for Control Panels
Stand-off insulators provide safe separation between live conductors and grounded metalwork while offering strong mechanical support. They help maintain electrical clearances, improve installation safety and support the long-term reliability of switchgear and power distribution equipment.
The Wöhner 05780 is engineered for professional electrical installations where dependable insulation, precise mounting and durable performance are essential. Its compact design makes it suitable for modern control cabinets where space is limited without compromising electrical safety.
Typical Applications
- Busbar support systems.
- Industrial switchboards.
- Electrical distribution panels.
- Control cabinets.
- OEM machinery.
- Power distribution assemblies.
