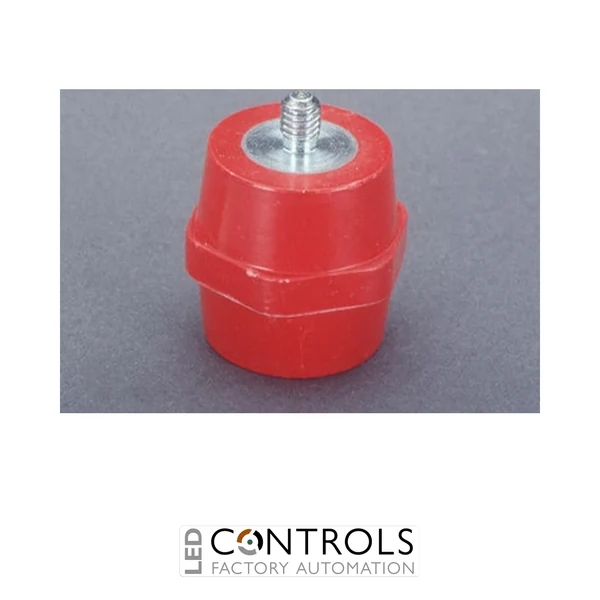

Wöhner 05800 stand-off insulator with M6 threaded stud and female thread, 30 mm height and 1500 V AC/DC insulation rating for busbar systems, switchgear and industrial control panels.
£6.91
The Wöhner 05800 is a high-quality stand-off insulator with a female thread and threaded stud, designed to provide reliable electrical insulation and secure mechanical mounting in low voltage switchgear, busbar systems and industrial control panels. Featuring an M6 connection and a compact 30 mm height, it is ideal for installations requiring a combination of threaded stud fixing and dependable electrical insulation.
Manufactured by Wöhner, the 05800 is produced from a durable, halogen-free insulating material and complies with IEC 61439-1:2020. Its robust construction and excellent dielectric properties make it suitable for panel builders, OEMs and industrial electrical engineers.
With a rated insulation voltage of 1500 V AC/DC, M6 threaded stud and female thread, and a 30 mm width across flats, the Wöhner 05800 provides dependable support for busbars and electrical assemblies while maintaining safe insulation distances.
Stand-off insulators provide safe separation between live conductors and grounded metalwork whilst supporting busbars and electrical equipment. They help maintain electrical clearances, improve operational safety and increase the long-term reliability of industrial power distribution systems.
The Wöhner 05800 is specifically designed for installations requiring a threaded stud on one side and a female thread on the other, providing flexible mounting while maintaining excellent insulation performance. It should always be installed on flat mounting surfaces to avoid excessive mechanical stress.
| Manufacturer | Wöhner |
|---|---|
| Model | 05800 |
| Product type | Stand-off insulator |
| Connection | M6 threaded stud with female thread |
| Height | 30 mm |
| Width across flats | 30 mm |
| Rated voltage | 1500 V AC/DC |
| Test voltage | 10 kV AC |
| Dimensions (W × H × D) | 30 × 30 × 30 mm |
| Material | Halogen-free insulating material |
| Operating temperature | -40°C to +130°C |
| Minimum tightening torque | 11 Nm |
| Maximum tightening torque | 12 Nm |
| Weight | Approx. 53 g |
| Standard | IEC 61439-1:2020 |
| HS Code | 85469010 |
| Country of Manufacture | Türkiye |
It provides electrical insulation and mechanical support for busbars and electrical components using a threaded stud and female thread mounting arrangement.
It features an M6 threaded stud with an M6 female thread, making it suitable for versatile mounting applications.
The insulator has a rated insulation voltage of 1500 V AC/DC.
Yes. It is manufactured from a durable halogen-free insulating material suitable for industrial electrical installations.
It should always be mounted on flat surfaces with both fixing points fully supported to prevent mechanical stress and ensure reliable long-term performance.
