Why Choose the ABB EV1119 Threaded Flat Busbars 20 × 5 mm?

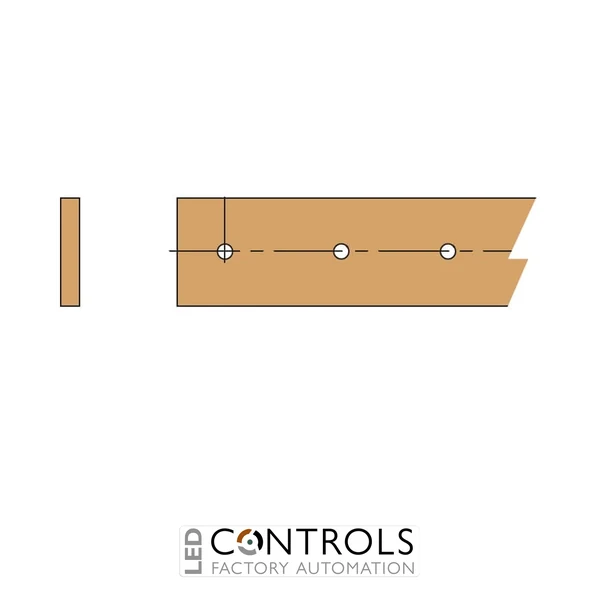

The ABB EV1119 is a set of two threaded flat busbars measuring 20 × 5 mm with a length of 2000 mm, designed for electrical power distribution applications within compatible ABB switchboard assemblies. As part of the ABB System pro E power range, these busbars provide conductive elements for building and configuring low-voltage electrical distribution systems.
Flat busbars are widely used in electrical switchgear to distribute electrical power between connected devices and circuit sections. Their rectangular cross-section provides a practical arrangement for electrical connections, while the threaded configuration supports the attachment of compatible electrical connection components and accessories.
The ABB EV1119 is supplied under ABB order code 1STQ001014A0000 and is designated as N.2 THREAD FLAT BUSBARS 20X5 W=2000MM. Its specified dimensions and two-piece configuration make it suitable for compatible System pro E power switchboard arrangements requiring threaded flat busbar components.
Key Advantages
- Genuine ABB System pro E power busbar components for compatible switchboard assemblies.
- Two threaded flat busbars supplied under the EV1119 product designation.
- 20 × 5 mm rectangular cross-section for electrical power distribution arrangements.
- 2000 mm nominal length for integration into compatible switchboard configurations.
- Threaded construction supports suitable bolted electrical connection arrangements.
- Designed for integration into low-voltage electrical distribution systems.
- Supports organised electrical switchboard assembly and component installation.
- Manufacturer-identified accessory with ABB order code 1STQ001014A0000.
Key Features
- ABB System pro E power switchboard accessory range.
- EV1119 threaded flat busbar set.
- Quantity: 2 flat busbars.
- Busbar width: 20 mm.
- Busbar thickness: 5 mm.
- Busbar length: 2000 mm.
- Nominal cross-sectional area: 100 mm² per busbar.
- Threaded flat busbar design for compatible electrical connections.
- Suitable for integration into compatible electrical distribution assemblies.
- Manufacturer order code: 1STQ001014A0000.
Reliable Power Distribution with ABB System pro E Power Busbars
Electrical busbars provide a common conductive pathway for distributing electrical energy between components in power distribution equipment. Flat busbars are particularly useful in switchboard construction because their rectangular geometry enables organised routing and the installation of compatible electrical connections.
The ABB EV1119 threaded flat busbars have a nominal rectangular cross-section of 20 × 5 mm, corresponding to a geometric cross-sectional area of 100 mm² per busbar. Their 2000 mm length provides a defined busbar dimension for use within compatible ABB System pro E power switchboard configurations.
The threaded design facilitates the integration of suitable connection hardware in accordance with the applicable assembly requirements. Electrical current-carrying capacity depends on factors including conductor material, installation arrangement, operating temperature, connection design and the verified ratings of the complete switchboard system.
ABB System pro E power is a modular low-voltage switchboard system designed to support flexible electrical distribution configurations. Using correctly specified ABB busbar components helps maintain mechanical compatibility and supports the construction of properly engineered electrical distribution assemblies.
Typical Applications
- ABB System pro E power low-voltage switchboards.
- Industrial electrical power distribution assemblies.
- Main and subsidiary electrical distribution boards.
- Commercial building electrical distribution systems.
- Electrical switchgear busbar arrangements.
- Power distribution connections within compatible switchboard sections.
- Electrical panel manufacturing and assembly.
- Maintenance and replacement of compatible busbar components.
