Why Choose the ABB MS124 Busbar Module Expansion 1PW?

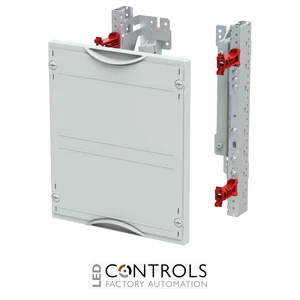

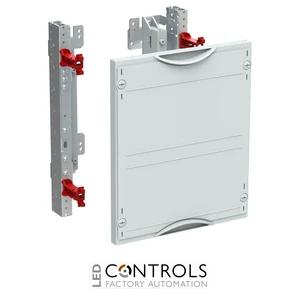

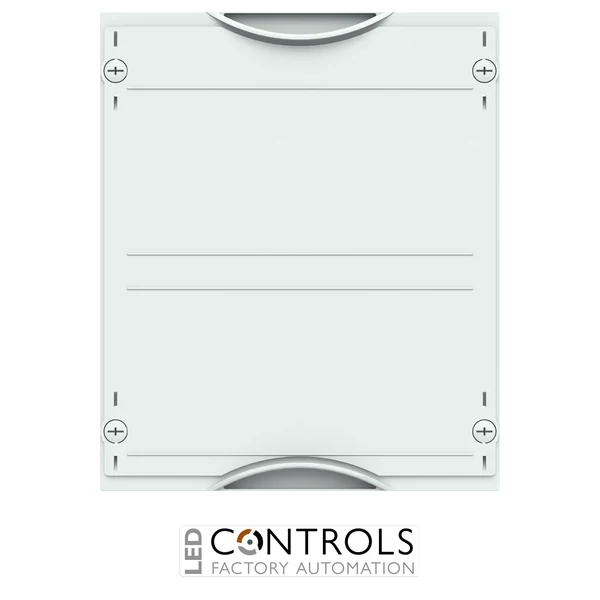

The ABB MS124, order code 2CPX041272R9999, is a horizontal busbar module designed for ABB CombiLine sub-distribution systems. Supplied as a mounted interior expansion module, it provides a structured solution for integrating a horizontal busbar system into compatible low-voltage distribution cabinets.
Designed for professional electrical distribution applications, the MS124 supports a maximum rated current of 360 A and accommodates up to five copper busbars. The module uses a 40 mm busbar centre distance and includes a ZB5 busbar holder, while the required copper busbars are ordered separately. Its closed plastic cover provides touch protection and uses a practical 90-degree push-turn fastener.
The MS124 occupies 1 panel width (PW/FB) and 2 grid units (GU/RE), with nominal dimensions of 300 mm high × 250 mm wide and 24 space units. It is suitable for installations from a cabinet depth of 200 mm and is designed for use with compatible EDF or WR mounting frames.
Key Advantages
- Purpose-designed horizontal busbar module for ABB CombiLine distribution systems.
- Maximum rated current of 360 A for demanding sub-distribution applications.
- Supports a maximum of five copper busbars.
- 40 mm busbar centre distance with ZB5 busbar holder.
- Compact 1-panel-width format for efficient cabinet integration.
- Closed plastic cover provides protection against accidental contact.
- 90-degree push-turn fastener provides convenient and secure access.
- Compatible with EDF and WR mounting frames for flexible system configuration.
Key Features
- ABB MS124 horizontal busbar module.
- ABB order code 2CPX041272R9999.
- Part of the ABB CombiLine interior expansion system.
- 360 A maximum rated current.
- Designed for a 5-pole busbar system.
- Horizontal busbar orientation.
- 40 mm busbar centre distance.
- Suitable for up to five copper busbars.
- Includes ZB5 busbar holder.
- 1 panel width (PW/FB) and 2 grid units (GU/RE).
- 24 space units (PLE).
- Closed plastic cover in RAL 7035 light grey.
- 90-degree push-turn cover fastener.
- Designed for EDF or WR mounting frames.
Reliable Power Distribution with the ABB CombiLine System
Busbar modules provide an organised method of distributing electrical power within low-voltage switchgear and distribution assemblies. The ABB MS124 is designed around a horizontal busbar arrangement with a 40 mm centre distance, providing capacity for up to five copper busbars and a maximum rated current of 360 A.
As part of the ABB CombiLine interior expansion system, the MS124 enables modular construction of professional sub-distribution assemblies. Its compact 1-panel-width format, ZB5 busbar holder and closed protective cover simplify integration into compatible cabinet systems while maintaining a structured and protected distribution arrangement. Copper busbars and the EDF or WR mounting frame are ordered separately.
Typical Applications
- Low-voltage electrical distribution boards.
- Commercial and industrial sub-distribution systems.
- ABB CombiLine panel assemblies.
- Horizontal power distribution within electrical cabinets.
- Five-pole busbar distribution systems.
- Electrical switchgear and control cabinets requiring busbar currents up to 360 A.
