Why Choose the ABB MS324 Busbar Module Expansion?

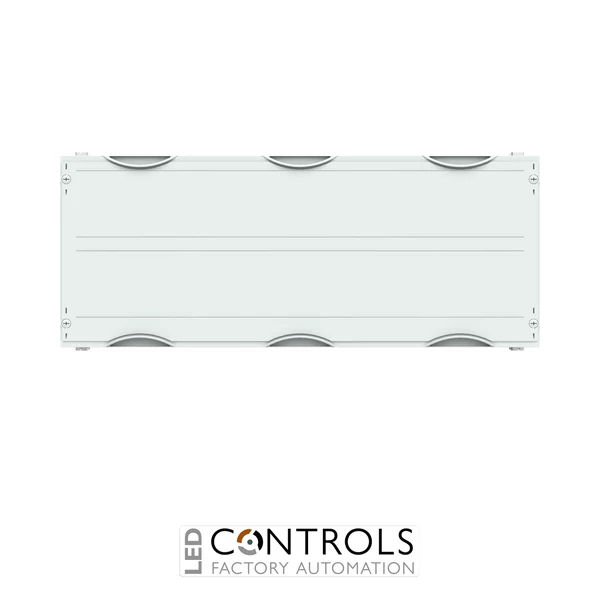

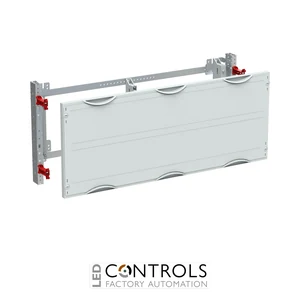

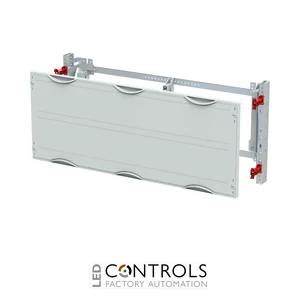

The ABB MS324 is a factory-assembled CombiLine horizontal busbar module expansion for compatible ABB sub-distribution cabinets. Supplied under ABB order code 2CPX041274R9999, it forms part of the ABB DESUJ Sub Distribution product group and provides a 3 PW / 750 mm field width for structured power distribution.
The MS324 has a 2 RE / 300 mm height and provides 72 space units. It is designed for a horizontal busbar system with a 40 mm busbar centre distance, supports up to five copper busbars and is supplied with ZB5 busbar holders. The module is additionally braced in the middle to support its 3 PW width.
Rated for a maximum current of 360 A, the MS324 provides a robust solution for integrating horizontal busbar distribution into ABB CombiLine assemblies. The module features closed RAL 7035 plastic covers with 90-degree press-and-turn closures, is suitable from a cabinet depth of 225 mm, and requires the busbars and compatible EDF or WR mounting frame to be ordered separately.
Key Advantages
- Purpose-designed horizontal busbar module for ABB CombiLine systems.
- 3 PW / 750 mm field width for broad power-distribution layouts.
- Maximum rated current of 360 A.
- Supports a maximum of 5 copper busbars.
- 40 mm busbar centre distance for structured installation.
- Additional centre bracing for the 3 PW module width.
Key Features
- ABB MS324 CombiLine busbar module expansion.
- 3 PW / 750 mm field width.
- 2 RE / 300 mm module height.
- 72 space units.
- 360 A maximum rated current.
- Horizontal busbar orientation.
- Maximum 5-pole busbar system.
- 40 mm busbar centre distance.
- Supplied with ZB5 busbar holders.
- Closed RAL 7035 plastic covers.
- 90-degree press-and-turn cover closures.
- Suitable from a cabinet depth of 225 mm.
- Busbars and EDF or WR mounting frame ordered separately.
Structured Horizontal Busbar Distribution
Busbar modules provide a structured method of distributing electrical power within professional distribution assemblies. The MS324's horizontal configuration accommodates up to five copper busbars at a 40 mm centre distance, providing a defined installation platform for power distribution while maintaining the modular architecture of the ABB CombiLine system.
With a 3 PW field width, 72 space units and maximum rated current of 360 A, the ABB MS324 is suited to distribution-board installations requiring a broad horizontal busbar section. Its ZB5 busbar holders, additional centre bracing and closed protective covers provide a system-compatible solution for professional sub-distribution assemblies.
Typical Applications
- Electrical sub-distribution boards.
- ABB CombiLine distribution systems.
- Horizontal busbar power-distribution sections.
- Commercial building electrical distribution.
- Industrial electrical distribution panels.
- Distribution-board extensions and power-distribution assemblies.
