Why Choose the ABB MR102H Busbar Module Expansion 1PW?

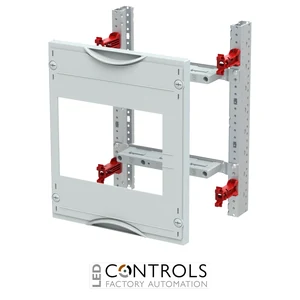

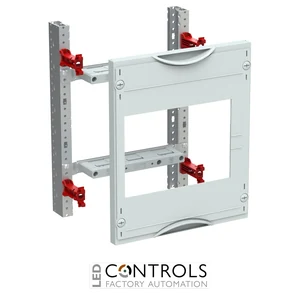

The ABB MR102H, order code 2CPX041412R9999, is an unpopulated 60 mm vertical busbar expansion module designed for ABB CombiLine low-voltage sub-distribution systems. Supplied mounted and installed for cabinet integration, it provides a dedicated platform for the horizontal installation of compatible bus-mounted fuse sockets within a compact modular assembly.
The MR102H is designed for a 3-pole busbar system with up to three copper busbars and a maximum rated current of 250 A. It uses the ABB ZX146 busbar holder with a 60 mm busbar centre distance and provides 32 mm spacing between the copper busbar and protective cover. The busbars themselves must be selected and ordered separately.
The MR102H occupies 1 panel width (PW) and 2 grid units (GU), corresponding to 300 mm high × 250 mm wide with 24 space units (PLE). It provides a usable cut-out height of 134 mm, can be installed in cabinets from 120 mm deep and is compatible with EDF or WR mounting frames, which must be ordered separately.
Key Advantages
- Purpose-designed 60 mm vertical busbar module for ABB CombiLine systems.
- Suitable for the horizontal installation of bus-mounted fuse sockets.
- 250 A maximum rated current for low-voltage sub-distribution applications.
- Designed for a 3-pole busbar system with up to three copper busbars.
- 60 mm busbar centre distance for compatible bus-mounted equipment.
- Equipped with an ABB ZX146 busbar holder.
- Compact 1-panel-width format with 24 space units.
- Compatible with both EDF and WR mounting frames.
Key Features
- ABB MR102H vertical busbar module.
- ABB order code 2CPX041412R9999.
- Part of the ABB CombiLine interior expansion system.
- 60 mm vertical busbar arrangement.
- Unpopulated for flexible selection of compatible bus-mounted equipment.
- Designed for horizontal installation of bus-mounted fuse sockets.
- 3-pole busbar system.
- Supports a maximum of 3 copper busbars.
- 250 A maximum rated current.
- 60 mm busbar centre distance.
- 32 mm spacing between copper busbar and cover.
- Equipped with ZX146 busbar holder.
- 134 mm usable cut-out height.
- 1 panel width (PW) and 2 grid units (GU).
- 24 space units (PLE).

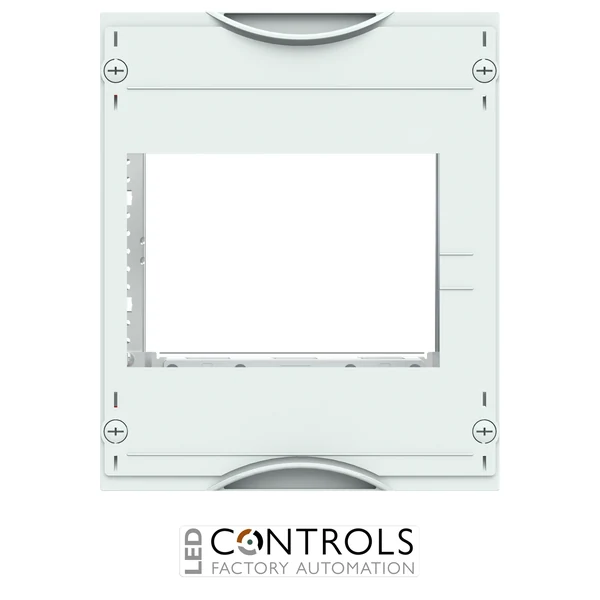

- Plastic cover with equipment cut-out in RAL 7035 light grey.
- 90-degree push-turn cover fastener.
- Suitable for cabinets from 120 mm depth.
- Compatible with separately ordered EDF or WR mounting frames.
Flexible Distribution with a 60 mm Vertical Busbar System
Vertical busbar modules provide a structured platform for distributing electrical power while allowing compatible protective and switching devices to be mounted directly onto the busbar system. The ABB MR102H uses a 3-pole 60 mm vertical busbar arrangement and is specifically configured for the horizontal installation of compatible bus-mounted fuse sockets.
With up to three copper busbars, a maximum rated current of 250 A and a usable cut-out height of 134 mm, the MR102H provides flexibility when configuring compact sub-distribution assemblies. Its 1-panel-width construction and minimum cabinet depth of only 120 mm make it particularly useful where installation space is limited.
Typical Applications
- Low-voltage electrical distribution boards.
- Commercial and industrial sub-distribution systems.
- ABB CombiLine cabinet assemblies.
- Horizontal installation of compatible bus-mounted fuse sockets.
- Three-pole 60 mm busbar distribution systems.
- Building services and electrical infrastructure distribution.
- Compact switchgear assemblies requiring modular fused outgoing circuits.
