Why Choose the ABB MN269 N+PE Busbar Expansion?

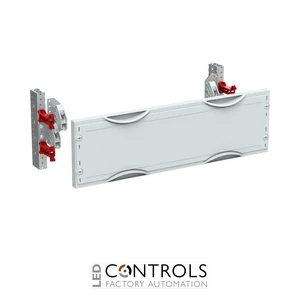

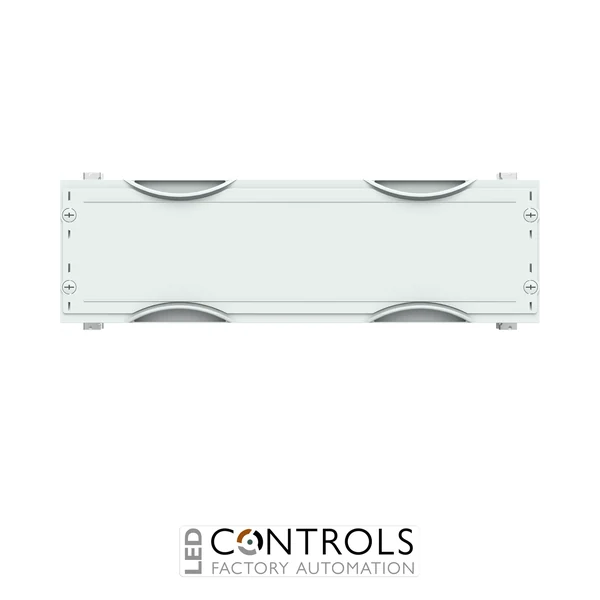

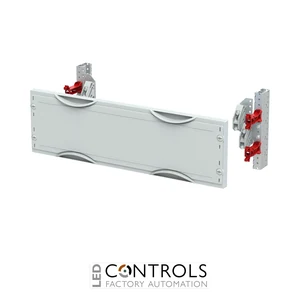

The ABB MN269 is a dedicated N+PE busbar expansion module designed for ABB CombiLine N sub-distribution systems. Supplied under ABB order code 2CPX041420R9999, this 2-panel-width module provides a structured horizontal neutral and protective-earth busbar arrangement for compatible low-voltage distribution cabinets.
The MN269 is designed for a 2-pole horizontal busbar system and incorporates an ABB ZX518 busbar holder. It accommodates a maximum of two copper busbars with a 40 mm centre-to-centre distance, while the required copper busbars are ordered separately.
With dimensions of 150 × 500 × 200 mm, 24 PLE capacity and a maximum rated current of 320 A, the MN269 provides a practical solution for neutral and protective-earth distribution across two panel widths. Its closed plastic cover is finished in RAL 7035 and uses a 90-degree press-and-turn closure for straightforward access during installation and servicing.
Key Advantages
- Purpose-designed N+PE busbar expansion for ABB CombiLine N systems.
- 2-panel-width configuration with a width of 500 mm.
- 320 A maximum rated current for low-voltage distribution applications.
- Designed for a 2-pole horizontal busbar system.
- Supports up to two copper busbars with 40 mm centre spacing.
- 24 PLE capacity for structured modular distribution-board construction.
Key Features
- ABB MN269 CombiLine N N+PE busbar module.
- 2 PW / 500 mm width.
- 1 RE / 150 mm height.
- 24 PLE installation capacity.
- 2-pole horizontal busbar arrangement.
- Maximum of two copper busbars.
- 40 mm busbar centre distance.
- Suitable for 12 × 5 mm copper busbars.
- Supplied with ZX518 busbar holder.
- 320 A maximum rated current.
- Closed plastic cover with 90-degree press-and-turn closure.
- Suitable from a cabinet depth of 200 mm.
Reliable Neutral and Protective-Earth Distribution
N and PE busbar systems provide dedicated connection and distribution points for neutral and protective-earth conductors within low-voltage electrical assemblies. A structured busbar module helps panel builders organise these connections while maintaining accessibility and a consistent internal distribution-board layout.
The ABB MN269 provides a horizontal 2-pole N+PE busbar arrangement within the CombiLine N system. Its 320 A maximum rated current, ZX518 busbar holder and provision for two copper rails make it suitable for professional sub-distribution assemblies requiring organised neutral and protective-earth distribution.
Typical Applications
- Commercial and industrial sub-distribution boards.
- Low-voltage electrical distribution cabinets.
- Neutral conductor distribution systems.
- Protective-earth conductor distribution systems.
- ABB CombiLine N modular distribution assemblies.
- Industrial switchboard and electrical panel-building projects.
