Why Choose the ABB ZXM1032 NH 40x10mm Busbar 2PW?

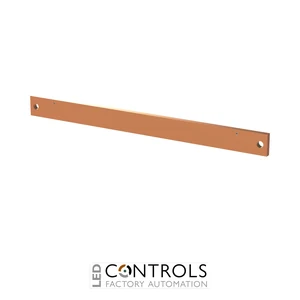

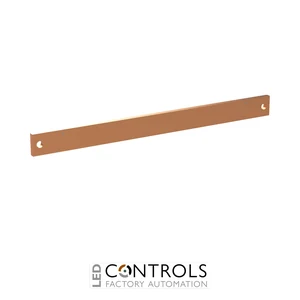

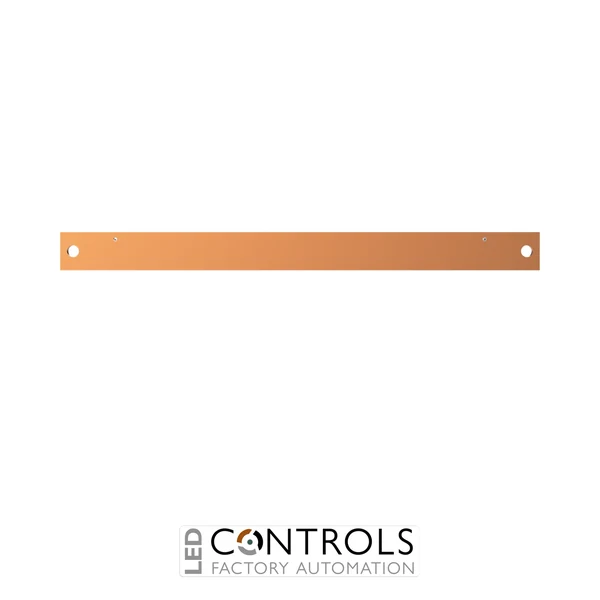

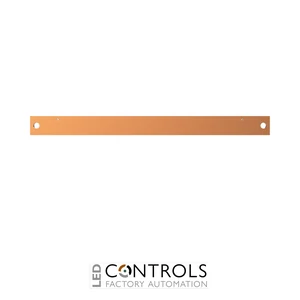

The ABB ZXM1032, order code 2CPX041511R9999, is a 40 × 10 mm copper busbar designed for ABB CombiLine low-voltage sub-distribution systems. It is intended for compatible NH load-break-switch busbar arrangements and provides a substantial conductor for higher-current distribution applications.
The ZXM1032 has a maximum rated current of 850 A and is designed for a 2-panel-width (PW) arrangement. Its copper conductor measures 40 × 10 mm and has a nominal length of 496 mm, matching the required field width for compatible 2 PW CombiLine installations.
Within ABB's CombiLine system, these busbars can be used for individual cabinet installations and compatible modules of different widths can be combined using continuous busbars. The ZXM1032 is the mounted and installed in the cabinet version, providing a system-matched copper rail for professional NH distribution assemblies.
Key Advantages
- Purpose-designed copper busbar for ABB CombiLine systems.
- Substantial 40 × 10 mm copper conductor for higher-current distribution.
- Maximum rated current of 850 A.
- Designed specifically for 2-panel-width (PW) installations.
- 496 mm nominal busbar length matched to the 2 PW CombiLine format.
- Suitable for compatible NH load-break-switch busbar systems.
- Supports continuous busbar arrangements across compatible module widths.
- Supplied mounted and installed in the cabinet.
Key Features
- ABB ZXM1032 copper busbar.
- ABB order code 2CPX041511R9999.
- Part of the ABB CombiLine interior expansion system.
- 40 × 10 mm copper rail cross-section.
- 850 A maximum rated current.
- 1-pole busbar component.
- Designed for 2 panel widths (PW).
- 496 mm nominal conductor length.
- Suitable for compatible CombiLine NH busbar modules.
- Compatible with continuous busbar arrangements across different module widths.
- Three copper rails are required per compatible 3-pole module arrangement.
- Supplied in the mounted and installed configuration.
- Corresponding uninstalled kit version: ABB ZX1032.
High-Current Copper Busbar Distribution for NH Assemblies
NH busbar systems provide a robust electrical distribution platform for fuse-based and load-break-switch applications within low-voltage switchgear. The ABB ZXM1032 uses a 40 × 10 mm copper cross-section and supports a maximum rated current of 850 A, making it suitable for compatible higher-current CombiLine NH distribution arrangements.
With a nominal length of 496 mm, the ZXM1032 corresponds to the ABB 2-panel-width configuration. Compatible modules of different widths can be combined with continuous busbars, while three copper rails are used per compatible 3-pole module to create the required three-phase distribution arrangement.
Typical Applications
- ABB CombiLine low-voltage distribution assemblies.
- NH load-break-switch busbar systems.
- Compatible 185 mm busbar-system modules.
- Commercial and industrial sub-distribution boards.
- 2-panel-width modular distribution arrangements.
- Continuous busbar systems across compatible CombiLine modules.
- Higher-current electrical distribution arrangements up to 850 A.
- Switchgear and distribution cabinets requiring a 40 × 10 mm copper rail.
