Why Choose the ABB ZXM1071 850A Busbar?

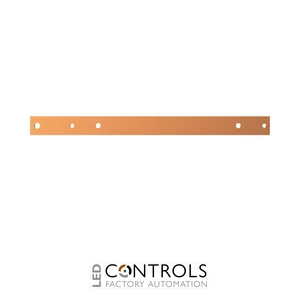

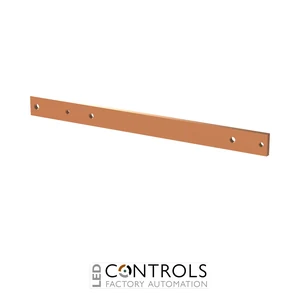

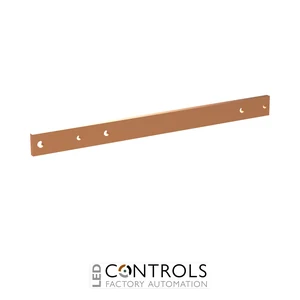

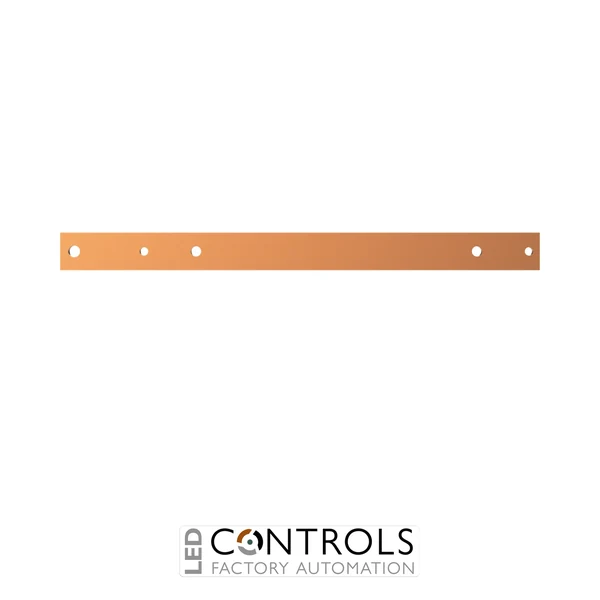

The ABB ZXM1071 is a heavy-duty 850 A busbar designed for high-current power distribution within compatible ABB low-voltage subdistribution assemblies. Supplied under ABB order code 2CPX041547R9999, the ZXM1071 combines a substantial 40 × 10 mm busbar cross-section with a 2 PW installation format for modular cabinet integration.
Its 850 A current rating makes the ZXM1071 suitable for demanding distribution sections where a robust conductive path is required between compatible devices and functional areas. The 40 × 10 mm profile provides the substantial conductor section needed for reliable high-current distribution in commercial and industrial low-voltage switchboards.
As part of ABB's DESUJ Sub Distribution product group, the ZXM1071 is intended for coordinated integration with compatible ABB cabinet and busbar components. Its 2 PW format provides a wider installation arrangement than the corresponding 1 PW variant while retaining the same 850 A current rating and 40 × 10 mm busbar profile.
Key Advantages
- Purpose-designed 850 A busbar for ABB subdistribution systems.
- 40 × 10 mm busbar cross-section for high-current power distribution.
- 2 PW configuration for compatible modular cabinet sections.
- Provides a robust conductive path for demanding electrical loads.
- Supports structured and organised internal power distribution.
- Designed for coordinated integration with compatible ABB distribution components.
- Suitable for commercial and industrial low-voltage switchboard applications.
Key Features
- ABB DESUJ Sub Distribution system component.
- 850 A rated current.
- 40 × 10 mm busbar dimensions.
- 2 PW installation format.
- Rigid busbar construction for dependable cabinet integration.
- Designed for higher-current low-voltage distribution sections.
- Suitable for modular switchboard and subdistribution assemblies.
- Supports systematic electrical panel construction.
Reliable 850A Power Distribution for Modular Cabinets
Busbars provide a structured and efficient method of distributing high electrical currents throughout low-voltage switchboards and distribution cabinets. Their rigid construction establishes a defined conductive path between compatible devices and functional sections, helping panel builders create organised internal power-distribution systems.
With its 850 A rating, substantial 40 × 10 mm profile and 2 PW configuration, the ABB ZXM1071 is suited to demanding cabinet sections where high current capacity and coordinated modular integration are required.
Typical Applications
- ABB low-voltage subdistribution systems.
- High-current commercial distribution boards.
- Industrial low-voltage distribution cabinets.
- 850 A internal power-distribution sections.
- Modular switchboard assemblies.
- Professional electrical panel building.
