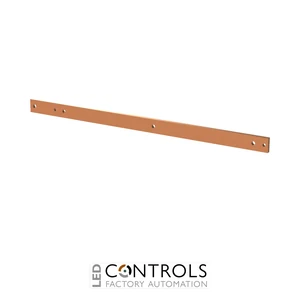

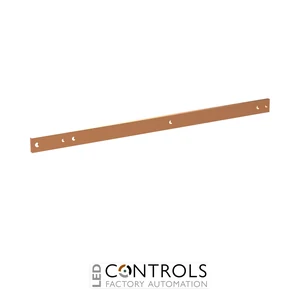

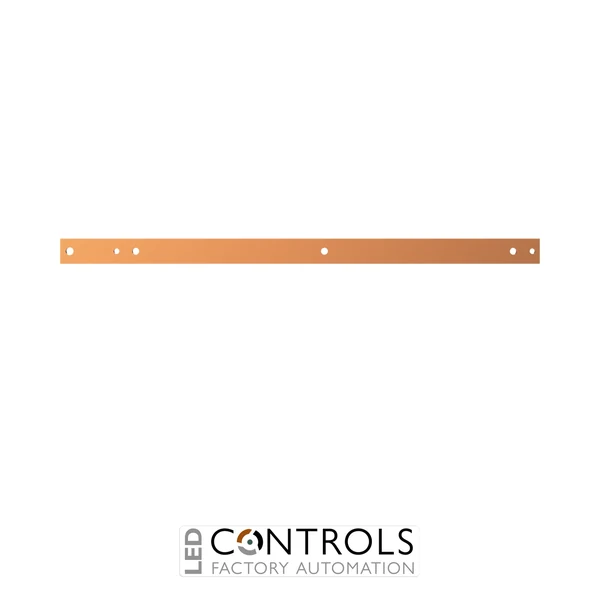

The ABB ZXM1072 is a robust 850 A copper busbar designed for high-current power distribution within ABB sub-distribution assemblies. Supplied under ABB order code 2CPX041548R9999, this flat copper rail forms part of the ABB CombiLine distribution system and is intended for reliable electrical distribution within compatible cabinet installations.
Manufactured with a substantial 40 × 10 mm copper cross-section, the ZXM1072 provides dependable current-carrying capacity for demanding low-voltage distribution applications. It is designed for cabinet row mounting and enables continuous busbar arrangements across compatible ABB distribution modules.
With a maximum rated current of 850 A and a length of approximately 767 mm, the ZXM1072 is suitable for 3-panel-width (3PW) configurations. Its factory-mounted format helps simplify assembly while providing a secure and consistent connection within ABB CombiLine and associated sub-distribution systems.
Key Advantages
High-current 850 A copper busbar for industrial and commercial power distribution.
Substantial 40 × 10 mm copper conductor section for efficient current carrying.
Designed for 3-panel-width (3PW) cabinet configurations.
Compatible with ABB CombiLine sub-distribution systems.
Flat, rigid copper construction for dependable electrical distribution.
Designed for continuous busbar arrangements within compatible cabinet installations.
Key Features
ABB ZXM1072 copper busbar.
850 A maximum rated current.
40 × 10 mm conductor dimensions.
Approximately 767 mm overall length.
3-panel-width (3PW) configuration.
Flat, rigid copper busbar construction.
Single-pole busbar component.
Designed for mounted installation within ABB distribution cabinets.
Reliable High-Current Power Distribution
Copper busbars provide a low-resistance method of distributing high electrical currents throughout switchboards and distribution assemblies. Their rigid construction and large conductor cross-section make them well suited to installations where reliable current carrying, mechanical stability and efficient use of cabinet space are essential.
The ABB ZXM1072 is designed for integration into ABB cabinet distribution systems, where continuous busbar arrangements can be used to connect compatible modules and cabinet sections. Its 850 A rating and 40 × 10 mm copper section make it suitable for substantial low-voltage distribution duties.
Typical Applications
Low-voltage electrical distribution cabinets.
ABB CombiLine sub-distribution systems.
Commercial and industrial switchboards.
High-current cabinet power distribution.
Panel building and electrical distribution assemblies.
Continuous busbar installations across compatible cabinet modules.
Technical Specifications
Tick the specs you need, then view products that match.
Length (mm)
767 mm
Product Series
ABB CombiLine
Device Type
Busbar
Rail / Busbar Profile
40 × 10 mm
Series
CombiLine
ABB order code
2CPX041548R9999
Product group
DESUJ Sub Distribution
Product type
Copper busbar / copper rail
Rated current
850 A maximum
Busbar dimensions
40 × 10 mm
Length
approx. 767 mm
Panel width
3PW
Number of poles
1
Construction
Flat rigid busbar
Material
Copper
Installation
Mounted within distribution cabinet
Maximum power loss
approx. 35.44 W
Gross weight
approx. 2.85 kg
EAN
4011617415480
Frequently Asked Questions
What is the ABB ZXM1072 used for?
The ZXM1072 is a copper busbar used for distributing high electrical currents within compatible ABB sub-distribution and cabinet systems.
What is the rated current of the ABB ZXM1072?
The ZXM1072 has a maximum rated current of 850 A.
What size is the ZXM1072 busbar?
The busbar has a 40 × 10 mm copper cross-section and an overall length of approximately 767 mm.
What panel width is the ZXM1072 designed for?
The ZXM1072 is designed for a 3-panel-width (3PW) configuration within compatible ABB cabinet systems.
What is the ABB order code for the ZXM1072?
The ABB order code for the ZXM1072 copper busbar is 2CPX041548R9999.
