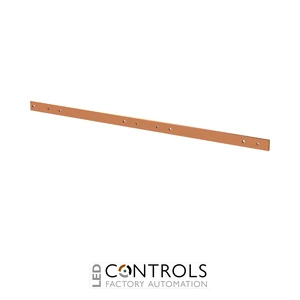

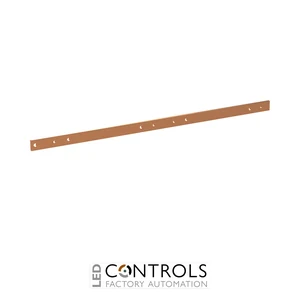

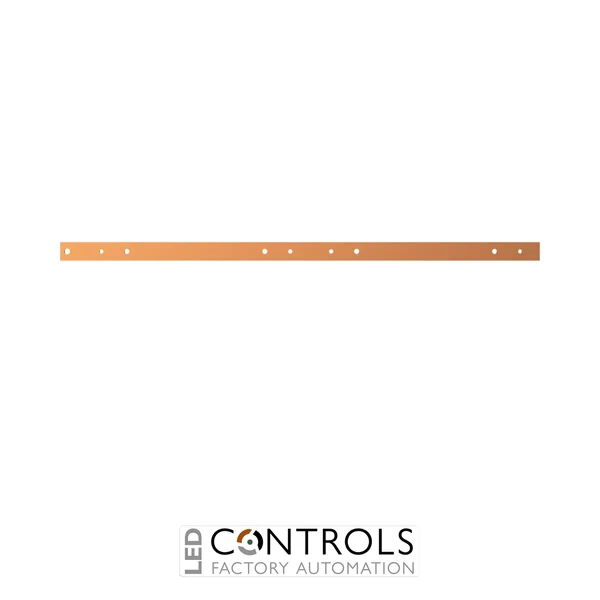

The ABB ZXM1073 is a high-current copper busbar designed for reliable power distribution within ABB electrical distribution cabinets. Supplied under ABB order code 2CPX041549R9999, it forms part of the ABB CombiLine distribution system and is supplied mounted for integration into compatible cabinet assemblies.
Manufactured from copper with a substantial 40 × 10 mm cross-section, the ZXM1073 provides a maximum rated current of 850 A. It is an A1 copper rail intended for cabinet row mounting on the right or left, supporting continuous busbar arrangements where different compatible module widths need to be combined within a distribution cabinet.
The ZXM1073 is designed for a 4-panel-width (4PW) arrangement and has a busbar length of approximately 1043 mm. Its rigid, single-pole construction makes it suitable for demanding low-voltage sub-distribution installations where dependable high-current distribution and compatibility with ABB cabinet systems are required.
Key Advantages
High-current 850 A copper busbar for professional electrical distribution systems.
Substantial 40 × 10 mm copper conductor section for efficient high-current distribution.
Designed for 4-panel-width (4PW) cabinet configurations.
Compatible with ABB CombiLine distribution systems.
Suitable for cabinet row mounting on the right or left.
Supports continuous busbar arrangements across compatible cabinet modules.
Key Features
ABB ZXM1073 copper busbar.
850 A maximum rated current.
40 × 10 mm copper rail.
Approximately 1043 mm busbar length.
4-panel-width (4PW) configuration.
Single-pole rigid busbar construction.
A1 copper rail for cabinet row mounting right or left.
Supplied mounted for installation within compatible ABB distribution cabinets.
Reliable High-Current Power Distribution
Copper busbars provide a low-resistance and mechanically robust method of distributing substantial electrical currents within switchboards and distribution cabinets. Their rigid construction and large conductor cross-section make them particularly suitable for applications requiring dependable current carrying, efficient use of cabinet space and reliable connections between distribution modules.
The ABB ZXM1073 is designed for cabinet row mounting within compatible ABB distribution systems. Different module widths can be combined using continuous busbars, while suitable connectors are used at busbar connections between cabinet sections. This makes the ZXM1073 well suited to modular low-voltage distribution installations requiring an 850 A current capacity.
Typical Applications
Low-voltage electrical distribution cabinets.
ABB CombiLine distribution systems.
Industrial and commercial switchboards.
High-current cabinet power distribution.
Panel building and electrical distribution assemblies.
Continuous busbar systems across compatible cabinet modules.
Technical Specifications
Tick the specs you need, then view products that match.
Length (mm)
1043 mm
Product Series
ABB CombiLine
Device Type
Busbar
Rail / Busbar Profile
40 × 10 mm
Series
CombiLine
ABB order code
2CPX041549R9999
Product group
DESUJ Sub Distribution
Product type
Copper busbar / copper rail
Busbar type
A1
Rated current
850 A maximum
Busbar dimensions
40 × 10 mm
Busbar length
approx. 1043 mm
Panel width
4PW (2PW + 2PW)
Number of poles
1
Construction
Flat rigid busbar
Material
Copper
Mounting position
Cabinet row mounting right or left
Maximum power loss
approx. 48.42 W
Gross weight
approx. 3.738 kg
Country of origin
Germany
EAN
4011617415497
Frequently Asked Questions
What is the ABB ZXM1073 used for?
The ZXM1073 is a copper busbar designed to distribute high electrical currents within compatible ABB distribution cabinets and modular sub-distribution systems.
What is the rated current of the ABB ZXM1073?
The ABB ZXM1073 has a maximum rated current of 850 A.
What size is the ZXM1073 busbar?
The ZXM1073 uses a 40 × 10 mm copper rail with a busbar length of approximately 1043 mm.
What panel width is the ZXM1073 designed for?
The ZXM1073 is designed for a 4-panel-width (4PW) arrangement, configured as 2PW + 2PW within compatible ABB cabinet systems.
What is the ABB order code for the ZXM1073?
The ABB order code for the ZXM1073 copper busbar is 2CPX041549R9999.
