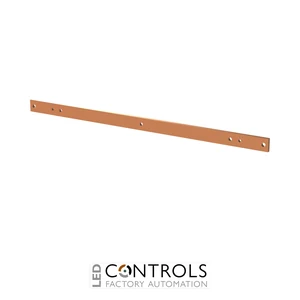

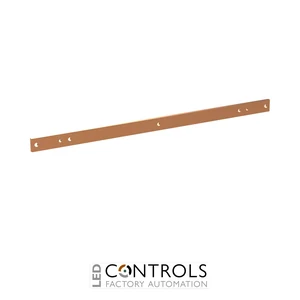

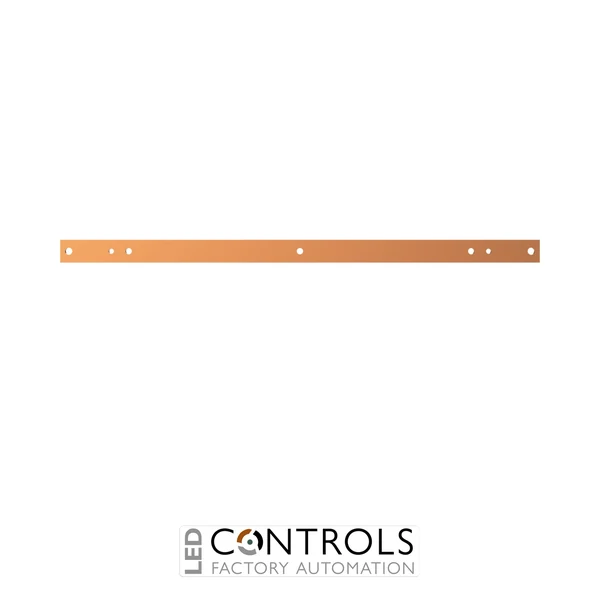

Why Choose the ABB ZXM1112 850A Busbar?
The ABB ZXM1112 is a heavy-duty 850 A copper busbar designed for reliable high-current power distribution within ABB low-voltage sub-distribution assemblies. Supplied under ABB order code 2CPX041584R9999, it forms part of the ABB CombiLine system and DESUJ Sub Distribution product group, providing a purpose-designed solution for professional switchboard and distribution cabinet installations.
Featuring a substantial 40 × 10 mm copper conductor, the ZXM1112 provides a low-resistance conductive path for distributing electrical current within compatible ABB distribution systems. Its rigid copper construction and cabinet-mounted format support dependable installation in applications requiring high current-carrying capacity.
With a maximum rated current of 850 A, a 3PW configuration and an approximately 840 mm busbar length for an 850 mm field width, the ZXM1112 is particularly suited to panel builders, switchboard manufacturers and electrical installers requiring a robust ABB-engineered busbar for demanding sub-distribution applications.
Key Advantages
- Purpose-designed ABB copper busbar for high-current sub-distribution applications.
- 850 A maximum rated current for demanding low-voltage distribution requirements.
- 40 × 10 mm copper conductor provides a substantial current-carrying cross-section.
- 3PW configuration for compatible ABB distribution assemblies.
- Designed for an 850 mm field width.
- Engineered for integration with the ABB CombiLine system.
Key Features
- ABB ZXM1112 copper busbar.
- 850 A maximum rated current.
- 40 × 10 mm busbar cross-section.
- Approximately 840 mm busbar length.
- 3 panel width (3PW) configuration.
- 850 mm field width.
- 1-pole construction.
- Mounted configuration for installation within compatible ABB cabinets.
- Maximum power loss of 39.27 W.
- ABB order code 2CPX041584R9999.
Reliable High-Current Power Distribution for Electrical Panels
Copper busbars provide a low-resistance conductive path for distributing substantial electrical currents between components within switchboards and distribution assemblies. Their rigid construction enables efficient power transfer while supporting organised and space-efficient electrical panel layouts.
The ABB ZXM1112 is designed for use within compatible ABB CombiLine distribution systems. Its 850 A current rating, 40 × 10 mm copper cross-section and 3PW format make it suitable for professional panel building applications requiring dependable high-current distribution across an 850 mm cabinet field.
Typical Applications
- High-current low-voltage distribution boards.
- Sub-distribution assemblies.
- ABB CombiLine distribution systems.
- Commercial and industrial switchboards.
- Distribution cabinet and panel construction.
- Panel building and electrical installation projects.
