Why Choose the ABB MBL35 Busbar Module Expansion 3PW?

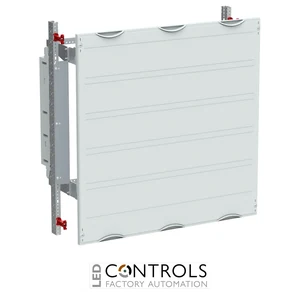

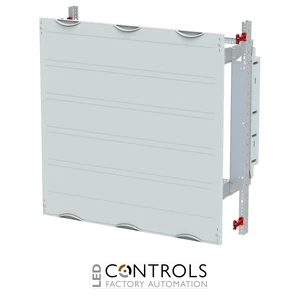

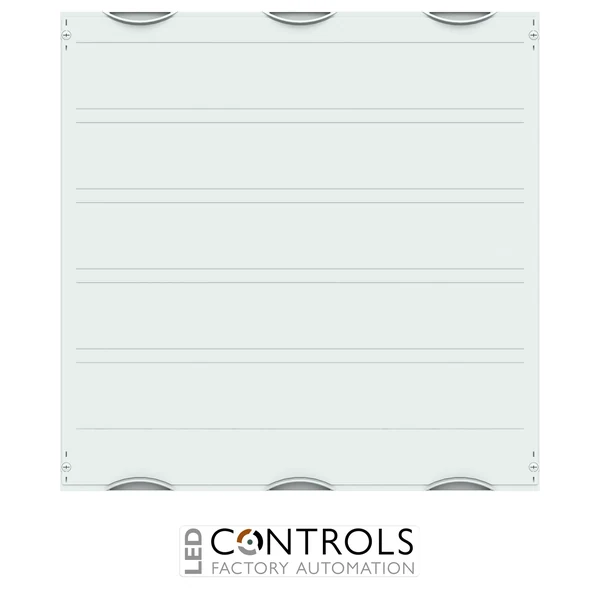

The ABB MBL35 is an unassembled 185 mm busbar system expansion module designed for ABB CombiLine N modular distribution assemblies. Supplied under ABB order code 2CPX041802R9999, it provides a structured platform for installing NH fuse load-break switch disconnectors within compatible low-voltage distribution boards and cabinets.
The MBL35 is unpopulated and provides installation capacity for up to 12 NH1–NH3 fuse load-break switch disconnectors. Its 3-pole horizontal busbar system uses ZX523 busbar holders with a 185 mm centre distance, accommodates up to three copper busbars and supports a maximum rated current of 850 A.
With a height of 750 mm, width of 750 mm and depth of 625 mm, the MBL35 corresponds to a 5 RE × 3 PW configuration and provides 180 space units. It offers a usable width of 600 mm, closed RAL 7035 plastic covers and compatibility with a separately ordered WR mounting frame and copper busbars.
Key Advantages
- Purpose-designed 185 mm busbar expansion module for ABB CombiLine N systems.
- Provides capacity for up to 12 NH1–NH3 fuse load-break switch disconnectors.
- Suitable for compatible NH switch-disconnector equipment in the 160–630 A range.
- Maximum busbar-system rated current of 850 A.
- 3-pole horizontal busbar arrangement with 185 mm centre spacing.
- 3 PW / 750 mm width provides 600 mm of usable installation width.
Key Features
- ABB MBL35 busbar system expansion module.
- ABB order code 2CPX041802R9999.
- Part of the ABB CombiLine N interior expansion system.
- Supplied as an unassembled, unpopulated kit.
- 5 RE / 750 mm height.
- 3 PW / 750 mm width.
- 625 mm depth.
- 180 space units.
- 600 mm usable width.
- Capacity for up to 12 NH1–NH3 fuse load-break switch disconnectors.
- Suitable for ABB SlimLine XR and compatible Jean Müller Sasil equipment.
- 3-pole horizontal busbar system.
- 185 mm busbar centre distance.
- Supplied with ZX523 busbar holders.
- Accommodates a maximum of three copper busbars.
- Designed for 40 × 10 mm copper busbars.
- Maximum rated current of 850 A.
- Maximum rated operating voltage of 400 V.
- Spacing from equipment front edge to cover of 138 mm.
- Closed plastic covers with 90-degree press-and-turn closures.
- RAL 7035 cover finish.
- Designed for installation on a WR mounting frame.
- Copper busbars and mounting frame must be ordered separately.
- Not suitable for fire-protection housings.
High-Current NH Busbar Distribution for Electrical Assemblies
185 mm busbar systems provide a standardised platform for integrating NH fuse load-break switch disconnectors into high-current low-voltage distribution assemblies. The ABB MBL35 combines a horizontal three-pole busbar arrangement with substantial equipment space, allowing multiple compatible NH switching and fuse-protection devices to be installed in an organised modular configuration.
The ABB CombiLine N system allows different module widths to be combined with continuous busbars where required. With a maximum rated current of 850 A, capacity for up to 12 NH1–NH3 fuse load-break switch disconnectors and 600 mm usable width, the MBL35 provides a robust foundation for fused power distribution in commercial and industrial switchboards.
Typical Applications
- ABB CombiLine N modular distribution assemblies.
- 185 mm NH busbar distribution systems.
- ABB SlimLine XR fuse load-break switch disconnector installations.
- Commercial and industrial low-voltage switchboards.
- High-current fused outgoing distribution circuits.
- Panel-building and power-distribution applications.
