Why Choose the ABB ZX1070 850A 40x10mm Busbar 1PW?

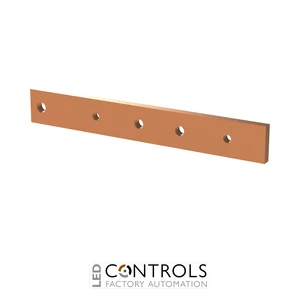

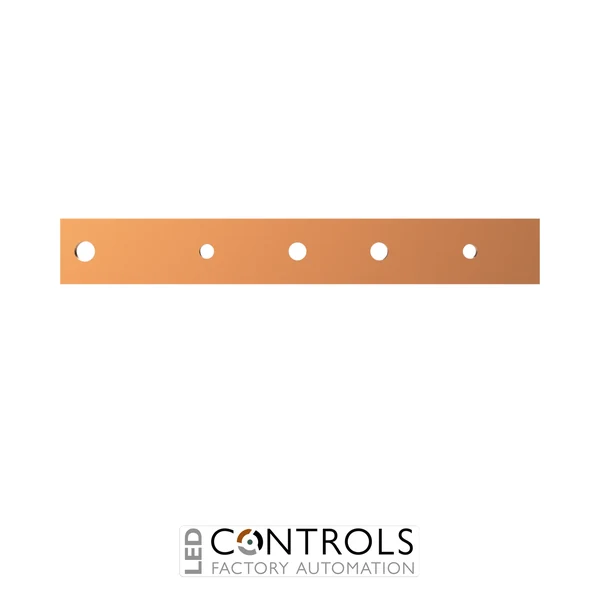

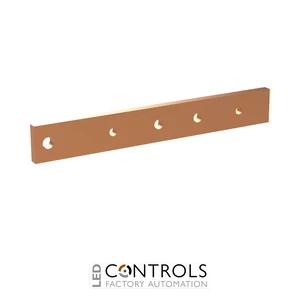

The ABB ZX1070 is a heavy-duty 40 mm × 10 mm copper busbar designed for ABB CombiLine modular electrical distribution systems. Supplied under ABB order code 2CPX041936R9999, it provides a robust high-current conductor for compatible low-voltage distribution assemblies with a maximum rated current of 850 A.
Designed for a 1 PW field-width configuration, the ZX1070 has a copper rail length of 293 mm and corresponds to a 298 mm field width. It forms part of ABB's Copper Rail A1 system for cabinet row mounting, where continuous busbars can be used to combine different module widths within the cabinet.
The ZX1070 is supplied as an individual, unassembled copper rail for panel construction. Its substantial 40 mm × 10 mm conductor section and 850 A rating make it suitable for demanding distribution applications where compact dimensions, high current capacity and coordinated ABB system compatibility are required.
Key Advantages
- Heavy-duty 40 mm × 10 mm copper busbar for high-current distribution.
- Maximum rated current of 850 A.
- Designed for a 1 PW field-width configuration.
- 293 mm copper rail length for coordinated installation.
- Suitable for a 298 mm field width.
- Part of ABB's Copper Rail A1 system for cabinet row mounting.
- Supports continuous busbar arrangements combining different module widths.
- Rigid copper construction provides a robust electrical distribution path.
Key Features
- ABB ZX1070 copper busbar.
- ABB order code 2CPX041936R9999.
- 1 PW field-width configuration.
- 40 mm busbar height.
- 10 mm busbar thickness.
- 293 mm busbar length.
- 298 mm corresponding field width.
- 850 A maximum rated current.
- Part of the Copper Rail A1 system.
- Designed for cabinet row mounting.
- Manufactured from copper.
- Flat, rigid and non-flexible construction.
- Untreated conductor surface.
- Single-pole busbar component.
- Supplied individually as an unassembled kit.
850A Copper Rail for High-Current Distribution
The ABB ZX1070 provides a substantial copper conductor for high-current distribution within compatible modular low-voltage assemblies. Its 40 mm × 10 mm cross-section, 293 mm rail length and maximum rated current of 850 A make it suitable for applications where a compact 1 PW busbar section must carry significant electrical loads.
Within ABB's cabinet row mounting system, different module widths can be combined using continuous busbars, with dedicated connectors used at cabinet busbar connections. ABB specifies three copper rails A1/A2 and C per applicable module, allowing the ZX1070 to form part of a coordinated and scalable high-current distribution architecture.
Typical Applications
- ABB CombiLine modular distribution assemblies.
- Cabinet row busbar systems.
- High-current low-voltage power distribution.
- Commercial electrical sub-distribution boards.
- Industrial switchgear and distribution panels.
- Modular panel construction requiring an 850 A copper busbar.
